LINE LIGHT 6, 03.5200US

LINE LIGHT 6, 03.5200US

SCANGRIP
03.5200US
Request order
$1,038.88
10-15 days

COMPLETE LIGHTING SOLUTION FOR TRUCK LIFTS AND LIFTS FOR OTHER HEAVY VEHICLES

LINE LIGHT 6 is for universal application on lifts for trucks and other heavy vehicles providing you with bright illumination exactly where you need it.



COMPLETE LIGHTING SOLUTION FOR TRUCK LIFTS AND LIFTS FOR OTHER HEAVY VEHICLES

LINE LIGHT 6 is for universal application on lifts for trucks and other heavy vehicles providing you with bright illumination exactly where you need it.

LINE LIGHT provides an extremely powerful illumination of the entire undercarriage, almost double illumination compared to traditional 36W fluorescent tubes. The design is slim and compact design (only ø25mm).

LINE LIGHT concentrates the light in a 75° beam angle, avoiding blinding during work. The lamp itself can be turned to provide the optimum lighting angle.

As LINE LIGHT is a low voltage (24V DC) system, you can easily do the installation yourself.

All basic fittings are supplied with each kit together with power supplies and cable.

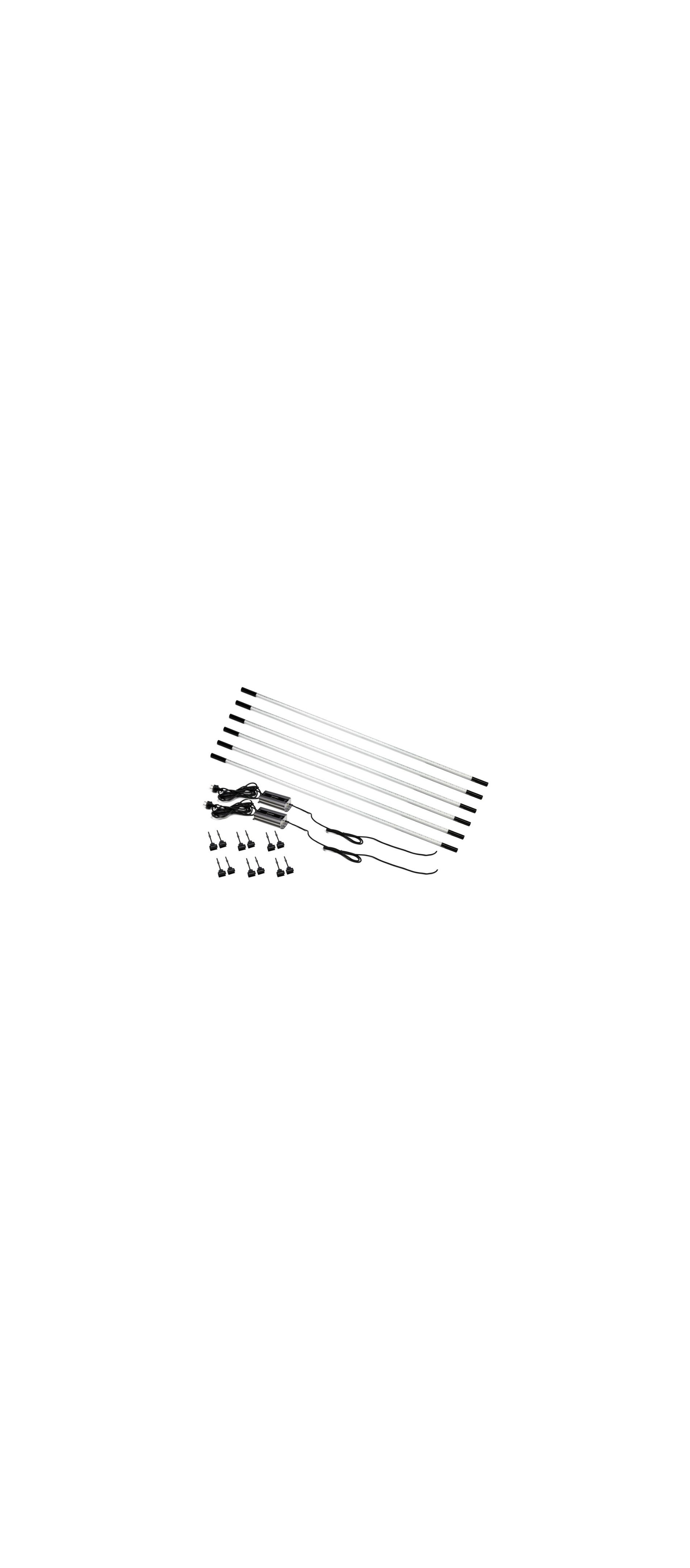

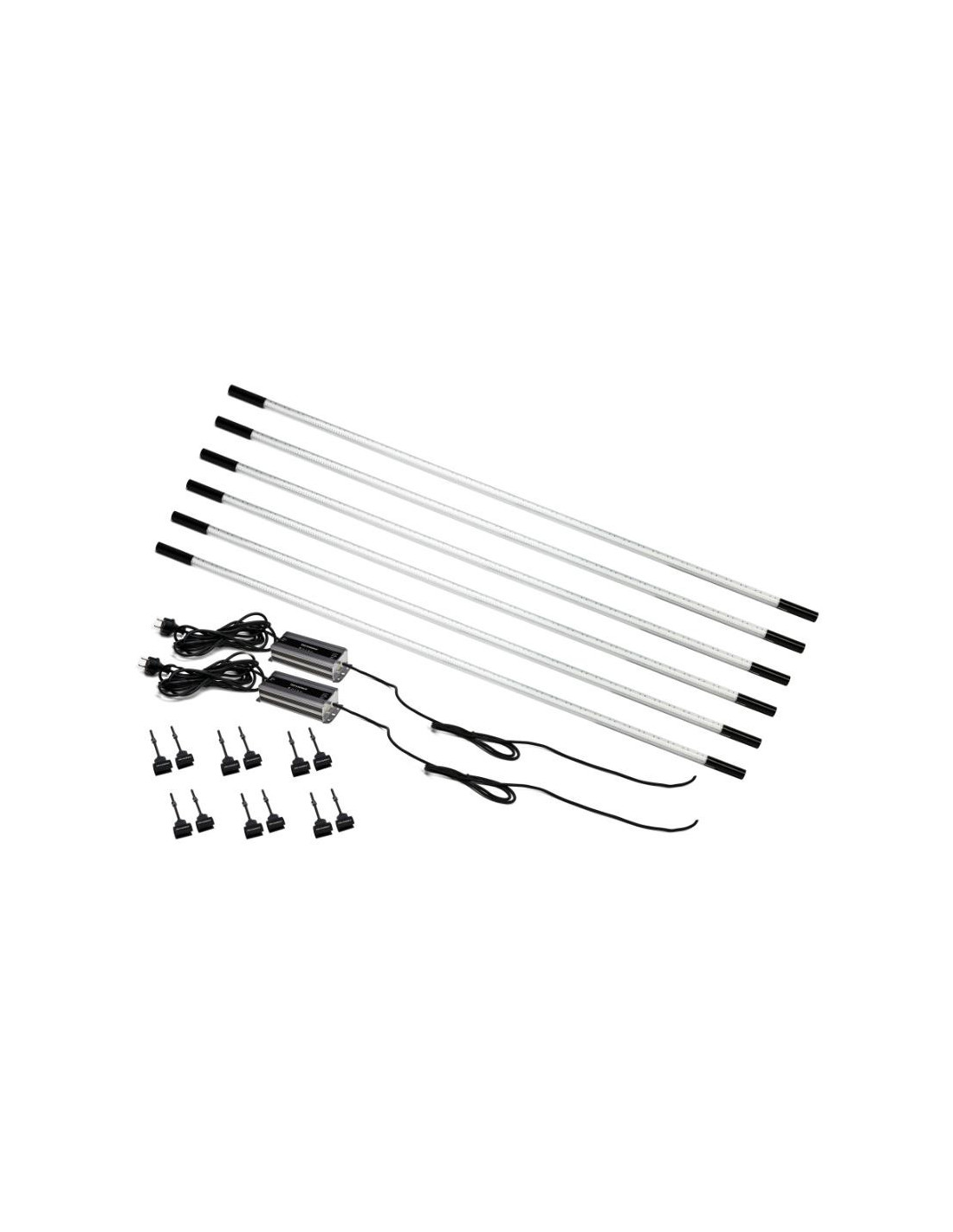

LINE LIGHT 6 consists of 6 lighting units 1630mm incl 2 pcs 80W power supply units, 2x8 m cable and complete suspension fittings.

LINE LIGHT is constructed by a closed extruded acrylic profile (PMMA) with built-in prism containing a LED PCB and end-covers in black anodized aluminium. It is extremely sturdy, shock- and waterproof (IP67) to resist wet and dirty workshop environment. The technical lifetime of LEDs is at least 100,000 hours.

// Available as accessory, the LINE LIGHT DIMMER lets you adjust the light intensity seamlessly

// The design of LINE LIGHT 6 is unique and covered by EU design patent RCD No 1882523.

03.5200US

LINE LIGHT 6, 03.5200US
General Specifications
Plug Type
Type A - US
Country Of Origin
DK
Impact Protection
IK07
Ingress Protection
IP67
Dimensions
Length Main
0
Width Main
25
Height Main
1630
Net Weight
8
Packing
Length Packaging
1.645
Width Packaging
240
Height Packaging
230
Gross Weight Packaging
9.34
Length Outer Box
0
Width Outer Box
0
Heigth Outer Box
0
Gross Weight Outer Box
0
Content Packaging
N/A
Battery Type
0
Power Source
0
Battery Voltage
Black cardboard box
Battery Capacity
6 x Lighting units
cable
power supply
fittings
manual
Battery
Cable
24V
Max Power Consumption
24V DC
Contents of the package
Charging Time
8m / H03VV-F 2x 0
5 mm2
Power Consumption
Illuminance Min Main
6 x 216 SMD LEDs
Lighting Specifications
Beam Angle Main
75°
CCT Main
6000
120
CRI Main
Ra > 80
Illuminance Max Main
1600
Luminous Flux Max Main
1400
Operating Temperature
-10 °C to +40 °C
5708997002551
