SCANGRIP
03.5223
Request order
$160.26
10-15 days

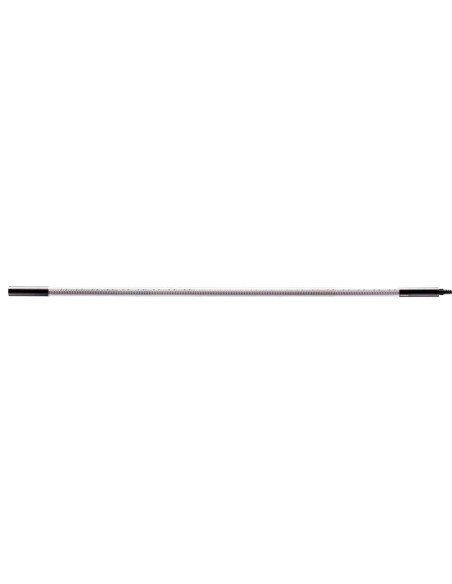

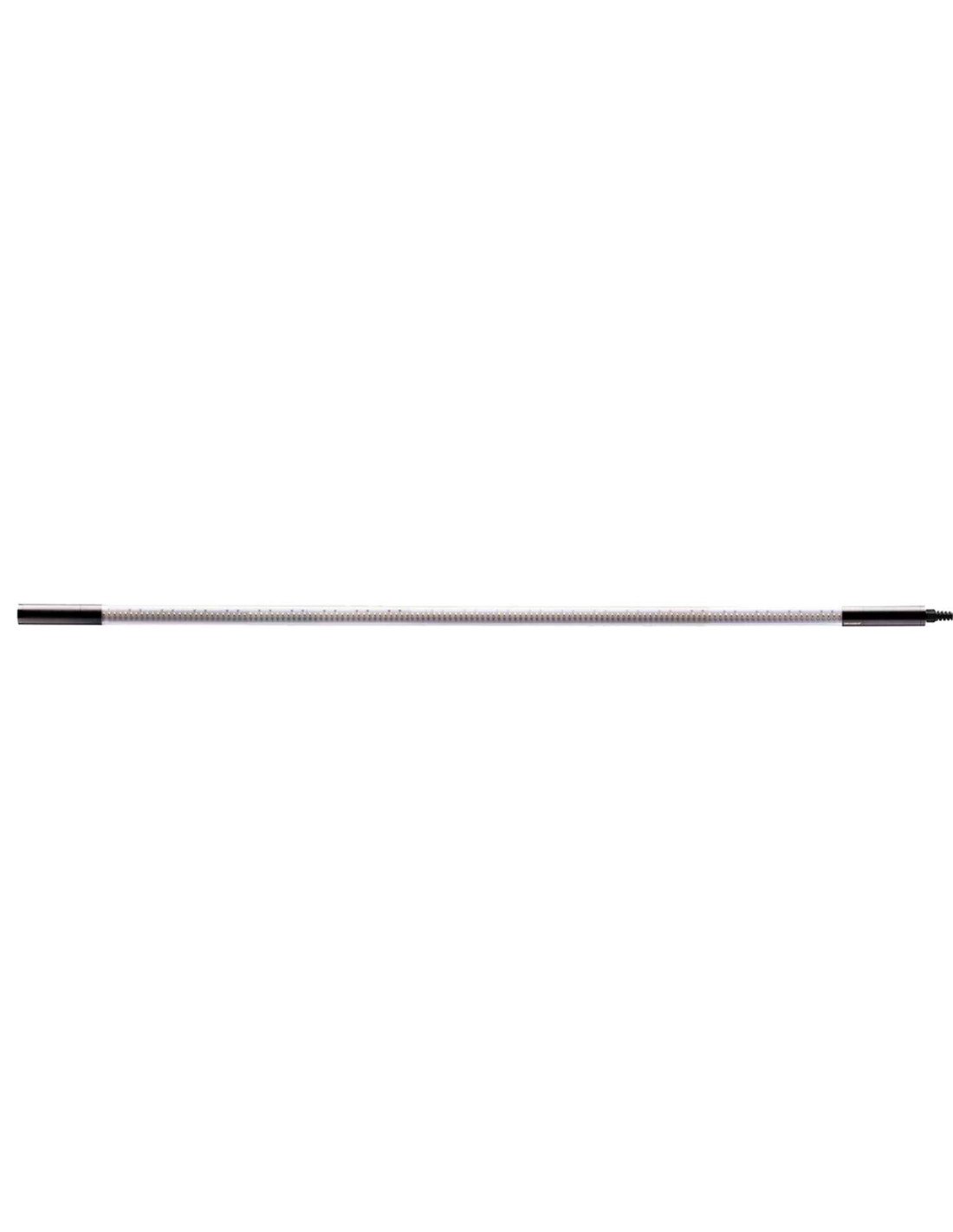

160 CM LIGHTING UNIT FOR CUSTOMIZED INSTALLATIONS

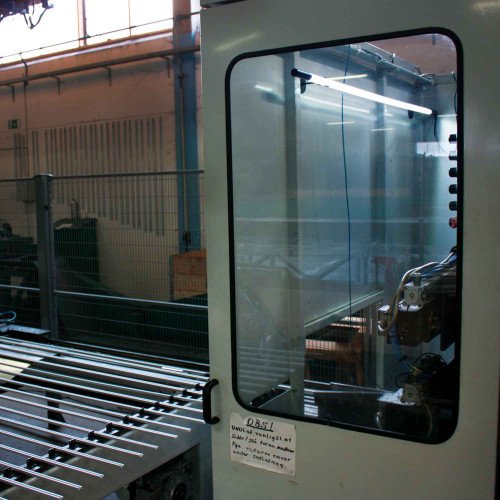

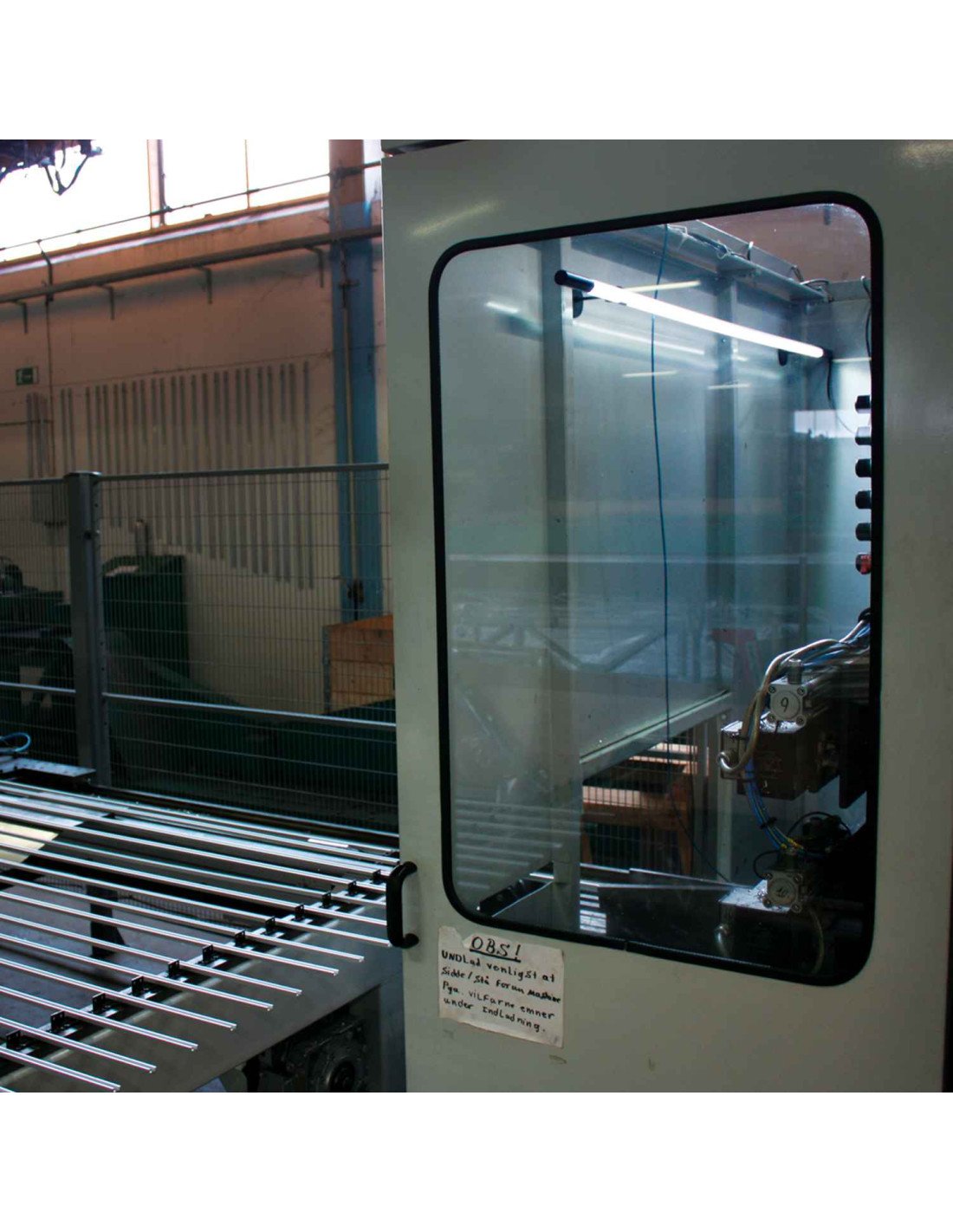

LINE LIGHT is a flexible lighting solution for universal application designed for use anywhere where strong, efficient, and concentrated light in a specific working area is needed.



160 CM LIGHTING UNIT FOR CUSTOMIZED INSTALLATIONS

LINE LIGHT is a flexible lighting solution for universal application designed for use anywhere where strong, efficient, and concentrated light in a specific working area is needed.

The LINE LIGHT lighting units are available in different lengths which can either be used alone or connected in a string to fit all kinds of application. The lighting units can be combined exactly the way you want offering a flexible lighting solution.

The LINE LIGHT series is based on the newest state-of-the-art LED technology and provides much more illumination compared to the traditional 36W fluorescent tubes.

LINE LIGHT concentrates the light in a 75° beam angle providing an extremely bright and powerful illumination of the entire working area. Blinding during work is avoided, and the lamp itself can be turned to provide the optimum lighting angle.

The quality of the light is extremely powerful, like daylight which is optimum for precise recognition of colours, shades and other product details. The uniform, flicker free illumination without strobe effects also minimizes the risk of accidents.

Extremely sturdy and shockproof lighting solution

LINE LIGHT is constructed by a closed "unbreakable" extruded acrylic profile (PMMA) which makes it extremely sturdy and shockproof to endure even strong strokes, shocks, and vibrations from industrial machinery.

LINE LIGHT endures the rough, wet, and dirty conditions of the professional working environment within the industry and is resistant to both oil and chemicals. The IP67 classification means that it is resistant to both dust and water. The technical lifetime of LEDs is at least 100,000 hours.

A range of suspensions makes it possible to position the lighting units exactly where you need it. Available as accessory, the LINE LIGHT DIMMER enables you to adjust the light intensity seamlessly.

Why you should choose LINE LIGHT 160

  • 160 cm lighting unit for universal application

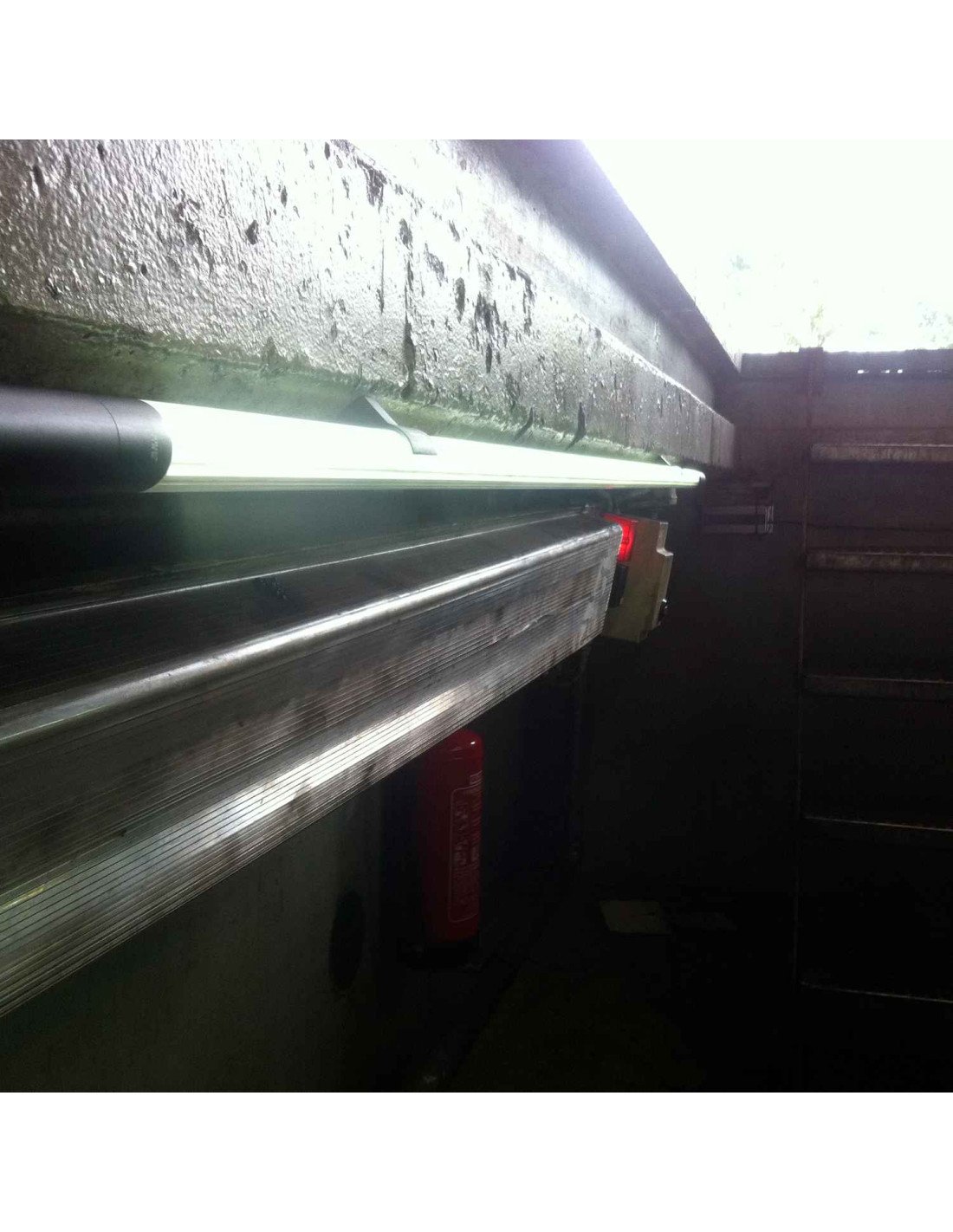

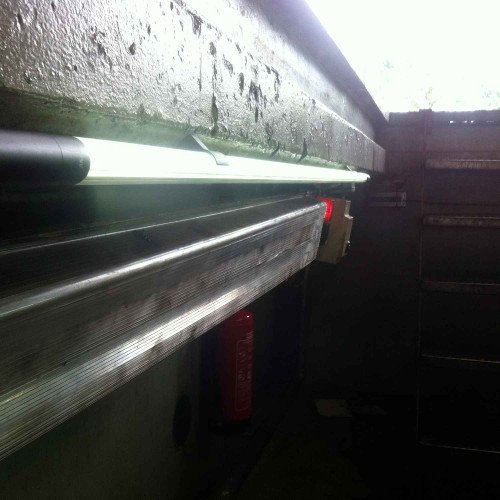

  • “Unbreakable”- extremely sturdy and shockproof lighting solution made for 4-post lifts
  • Waterproof To Resist Wet And Dirty Workshop Environment
  • Low Voltage 24v Dc
  • Technical Lifetime Of Leds 100.000 Hours

Made In Denmark

// The design of LINE LIGHT 160 is unique and covered by EU design patent RCD No 1882523.

03.5223

LINE LIGHT 160, 03.5223
General Specifications
Plug Type
Not applicable
Country Of Origin
DK
Impact Protection
IK07
Ingress Protection
IP67
Dimensions
Length Main
0
Width Main
25
Height Main
1630
Net Weight
0.67
Packing
Length Packaging
1820
Width Packaging
55
Height Packaging
55
Gross Weight Packaging
1.06
Length Outer Box
0
Width Outer Box
0
Heigth Outer Box
0
Gross Weight Outer Box
0
Content Packaging
N/A
Battery Type
0
Power Source
0
Battery Voltage
Cardboard tube
Battery Capacity
Lighting unit
manual
Battery
Cable
24V
Max Power Consumption
24V DC
Power Consumption
Illuminance Min Main
216 SMD LEDs
Lighting Specifications
Beam Angle Main
75°
CCT Main
6000
22
CRI Main
Ra > 80
Illuminance Max Main
3000
Luminous Flux Max Main
2750
Operating Temperature
-10 °C to +40 °C
5708997352236
