LINE LIGHT 4, 03.5201

COMPLETE LIGHTING SOLUTION FOR 4-POST LIFTS

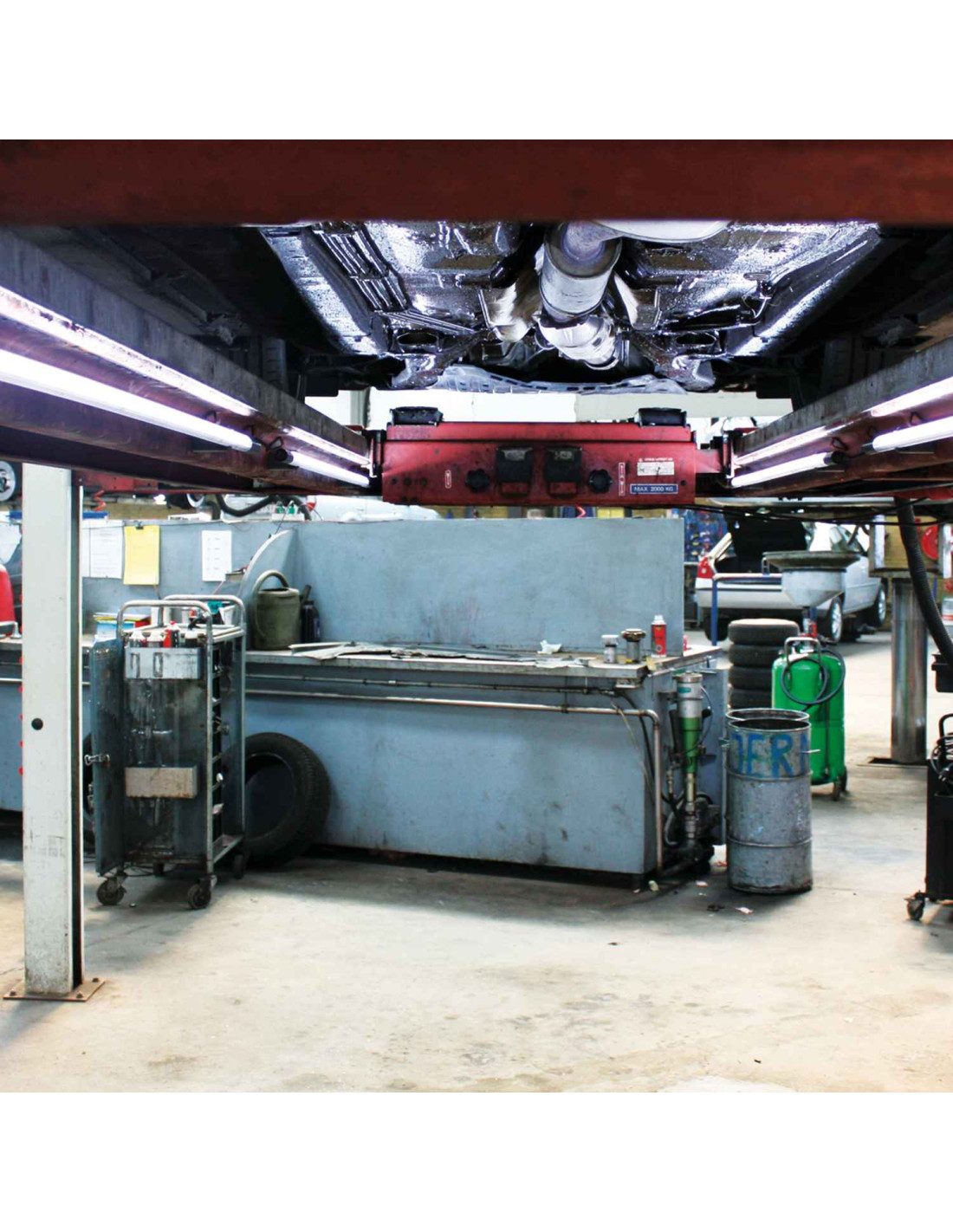

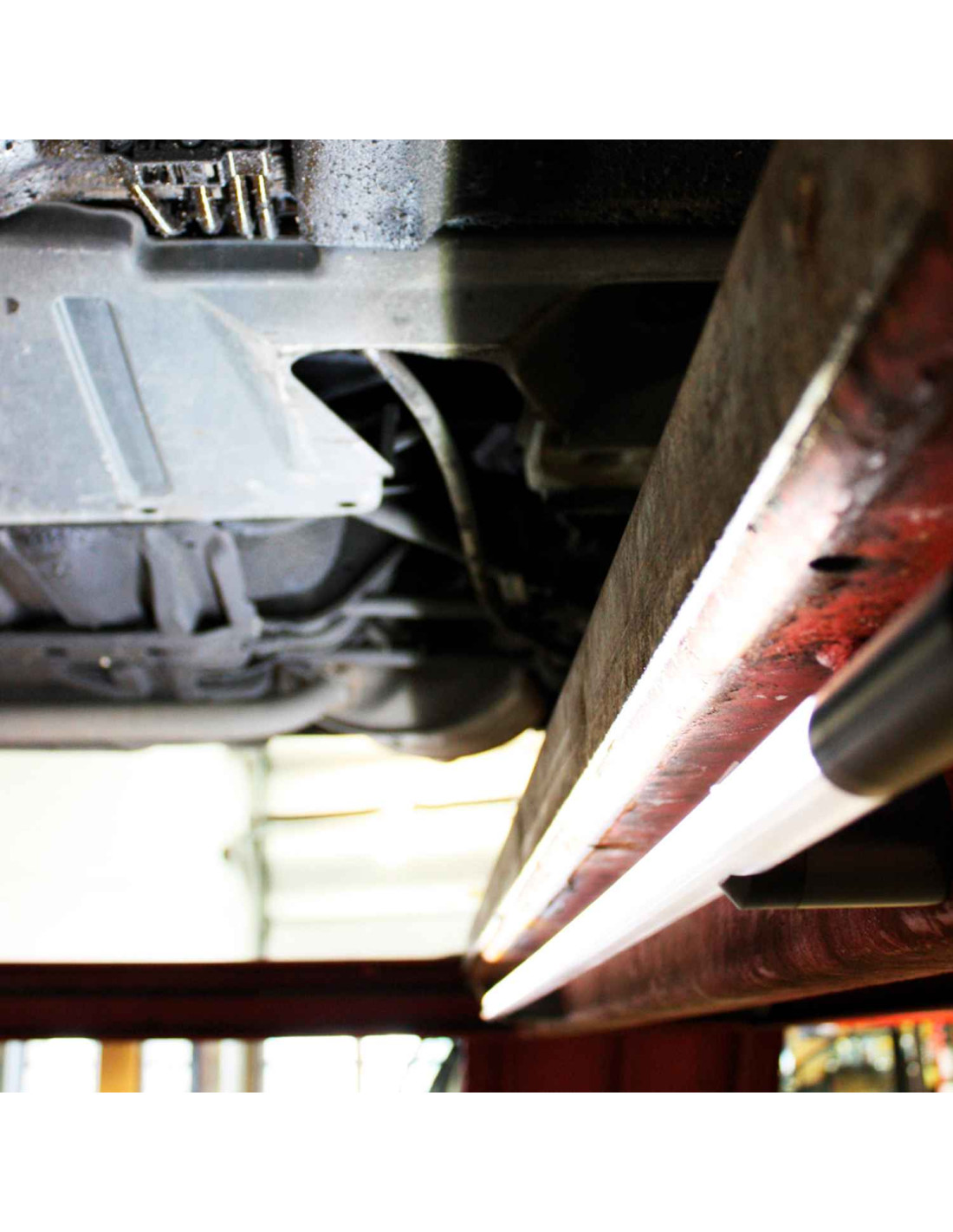

LINE LIGHT 4 is a unique lighting solution for universal application on 4-post lifts providing an extremely powerful illumination of the entire undercarriage. The slim and compact design (only ø25mm) leaves space for the center jack to pass.

LINE LIGHT 4 has been upgraded from 1400 to 2750 lumen, and compared to traditional 36W fluorescent tubes, it provides extremely bright illumination with low power consumption. LINE LIGHT 4 concentrates the light in a 75° beam angle, avoiding blinding during work. The lamp itself can be turned to provide the optimum lighting angle.

Extremely sturdy and shockproof lighting solution

LINE LIGHT is constructed by a closed extruded acrylic profile (PMMA) with built-in prism containing a LED PCB and end-covers in black anodized aluminium. It is extremely sturdy, shock- and waterproof (IP67) to resist wet and dirty workshop environment. The technical lifetime of LEDs is at least 100,000 hours.

LINE LIGHT 4 consists of 4 lighting units 1630mm incl 80W power supply unit, 8 m cable, the LINE LIGHT DIMMER and complete suspension fittings. As LINE LIGHT is a low voltage (24V DC) system, you can easily do the installation yourself. All basic fittings are supplied with each kit together with power supply and cable.

The pre-defined LINE LIGHT kit is considered universal and will fit the majority of all automotive 4-post lifts, regardless of the manufacturer or brand.

Why you should choose LINE LIGHT 4

• “Unbreakable”- extremely sturdy and shockproof lighting solution made for 4-post lifts
• Waterproof To Resist Wet And Dirty Workshop Environment
• Low Voltage 24v Dc
• Technical Lifetime Of Leds 100.000 Hours
• Made In Denmark

// The design of LINE LIGHT 4 is unique and covered by EU design patent RCD No 1882523.
