RECHARGEABLE EXPLOSION PROOF HAND LAMP
SCANGRIP’s EX PROOF line is made for hazardous atmospheres with explosion dangers. The explosion proof line is ideal for offshore work, the chemical industry, tank vehicles, refineries and many more. Long story short – the EX PROOF line is perfect for all industries where gas and dust are a safety risk.
UNI-EX is a very sturdy, rechargeable explosion proof COB LED work light made for hazardous areas with risk of explosion. Compared to the previous version, the light output has been increased from 290 lumen to 350 lumen, and the operation time is now up to 15 hours. Approved for zone 0/20.
The COB LED light provides a unique powerful and completely uniform illumination which is ideal for working light. UNI-EX is supplied with both mainlight and toplight. It offers a two-step operating option: either 50 % or 100 % light output.
The intelligent battery indicator at the back keeps you informed about the battery level.
Sturdy and flexible explosion proof light

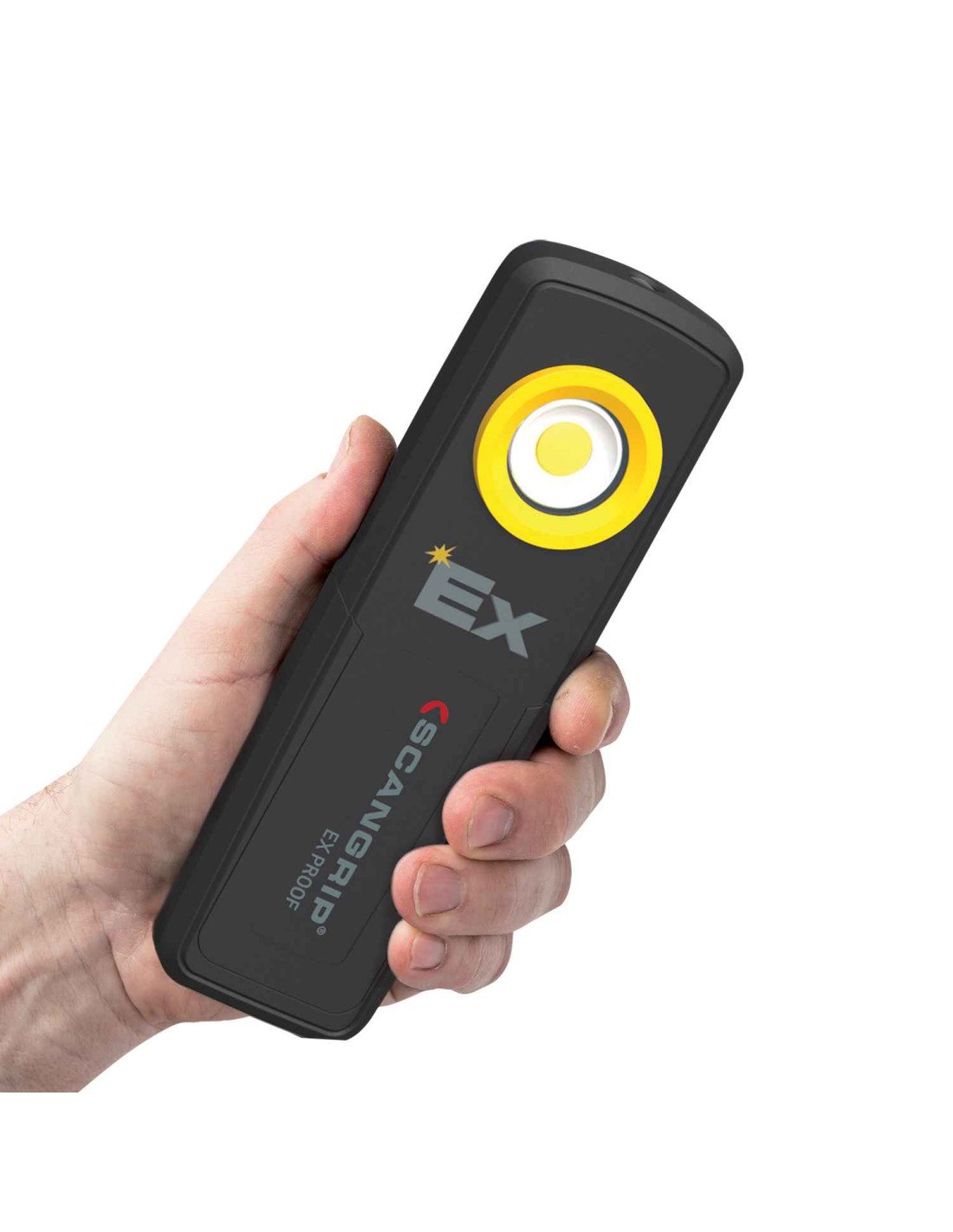

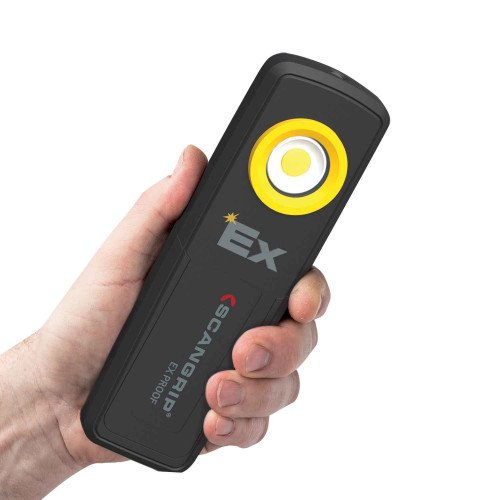

The extremely durable UNI-EX lamp features a sturdy surface to resist wet and dirty work environments. Also, with the shape and surface of the lamp, it provides a comfortable, ergonomic grip.

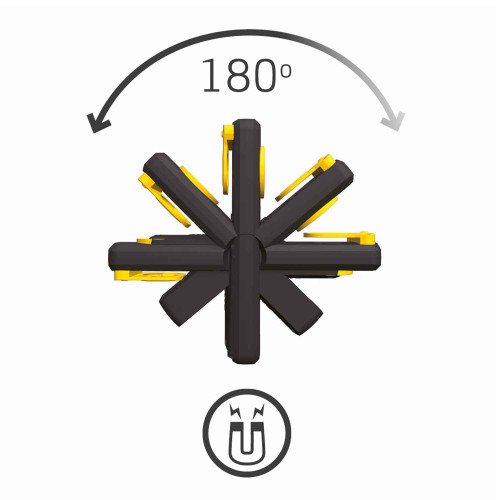

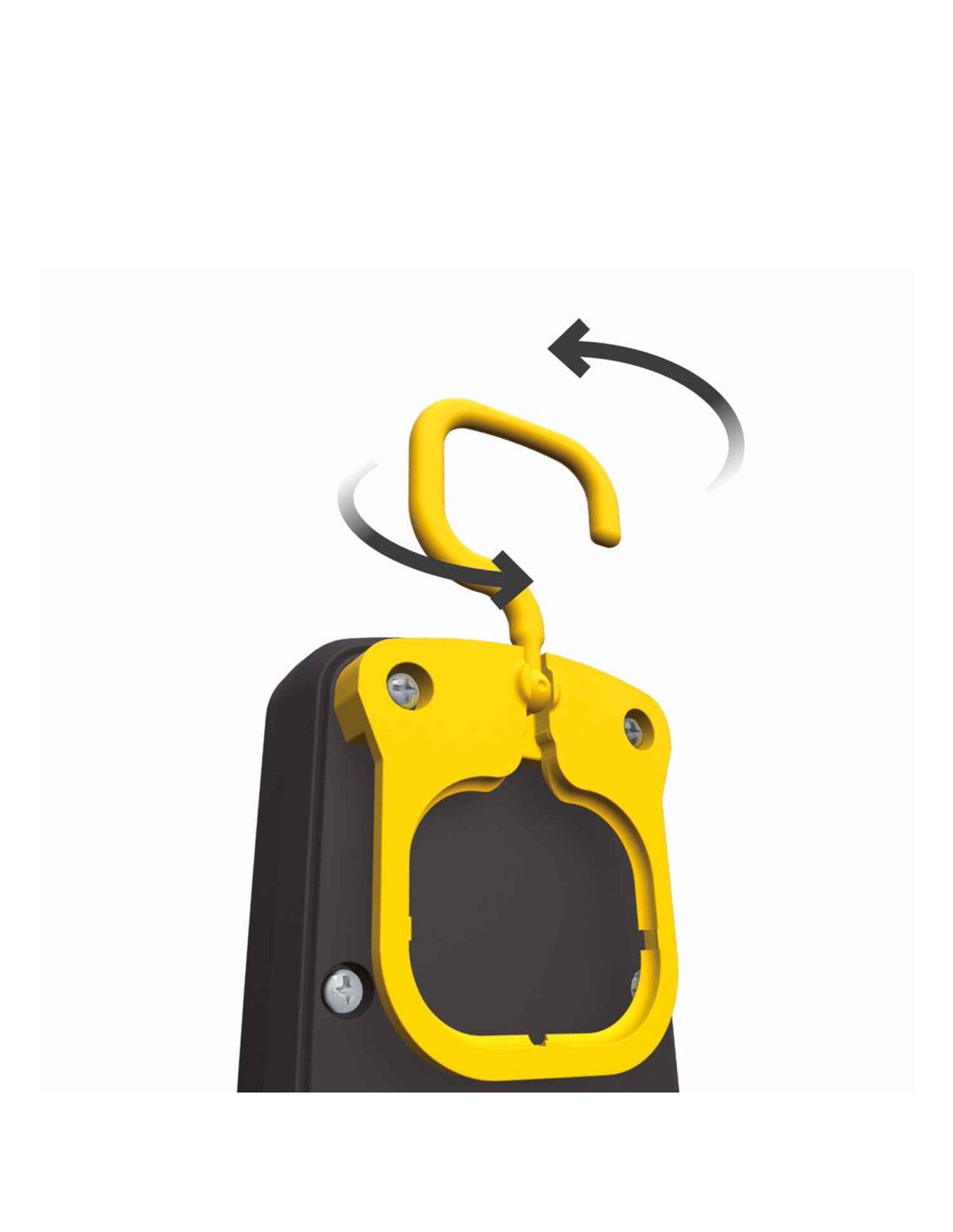

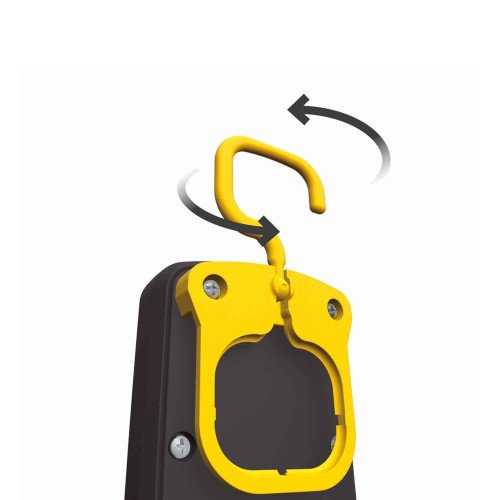

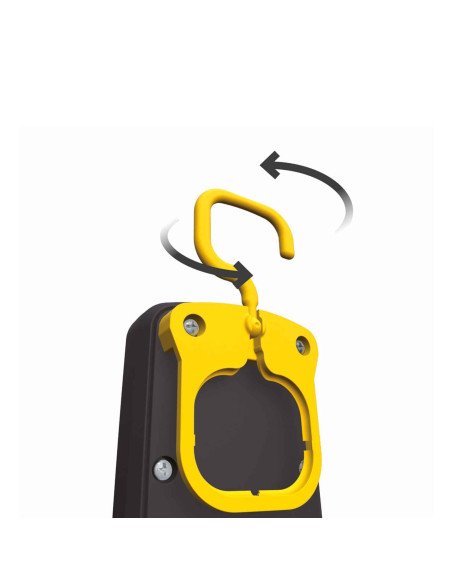

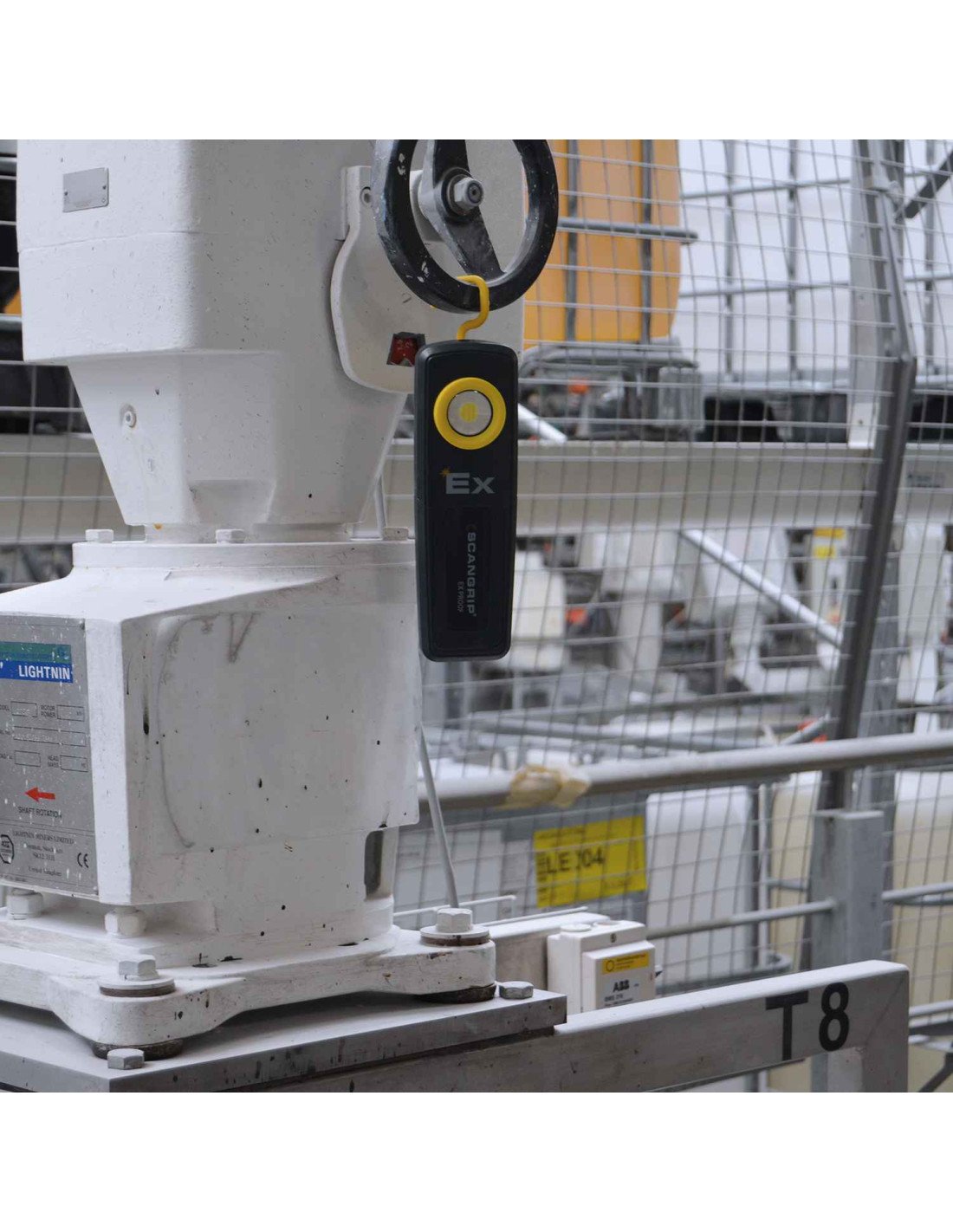

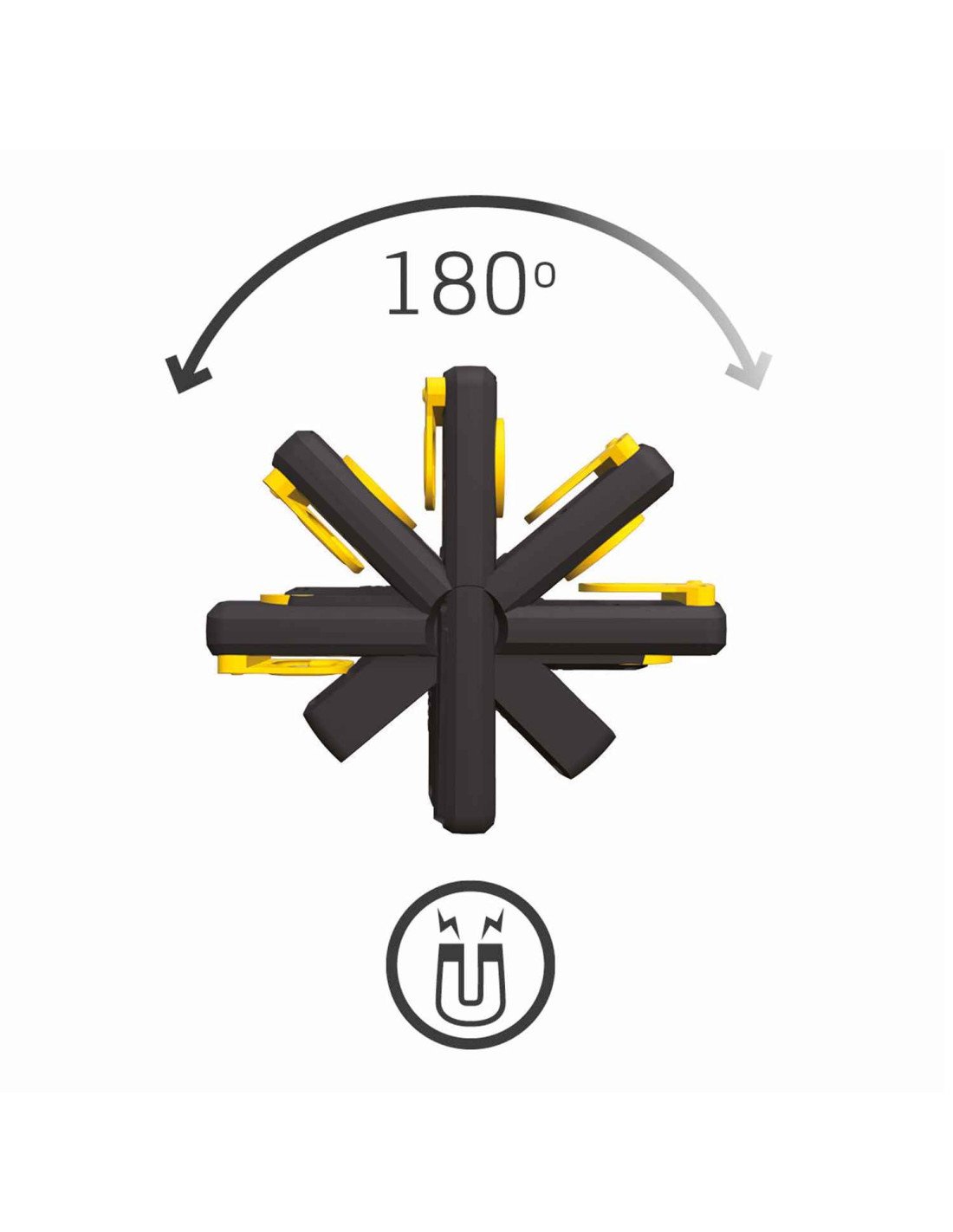

Place the explosion proof LED handlamp everywhere you want during inspection work with the turnable sturdy hook or the strong built-in magnet in the bottom to have both hands free for working. The flexible lamp head tilts up to 180°.

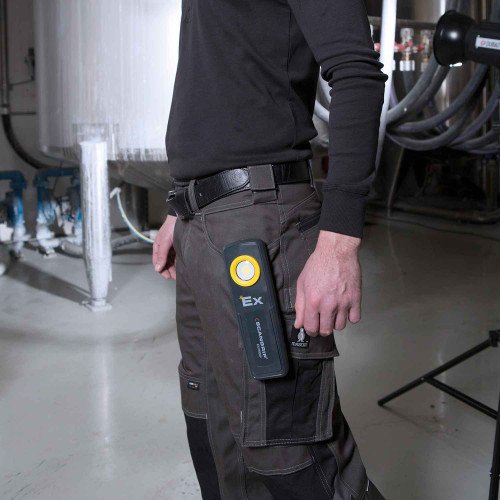

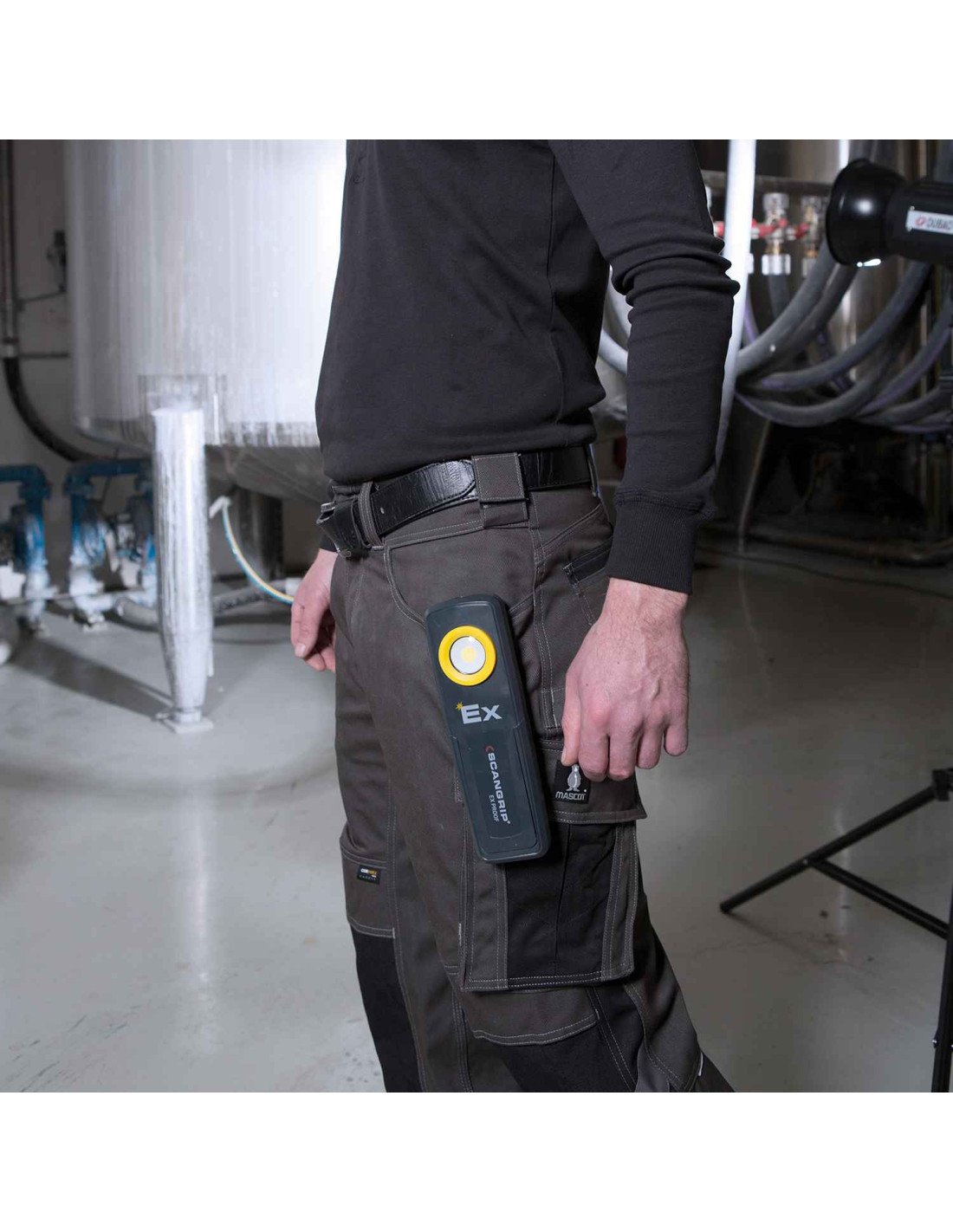

UNI-EX is designed to carry in the pocket or in the work belt by the built-in belt clip. In this way, you always have the work light close at hand when you need efficient and bright illumination for a job.

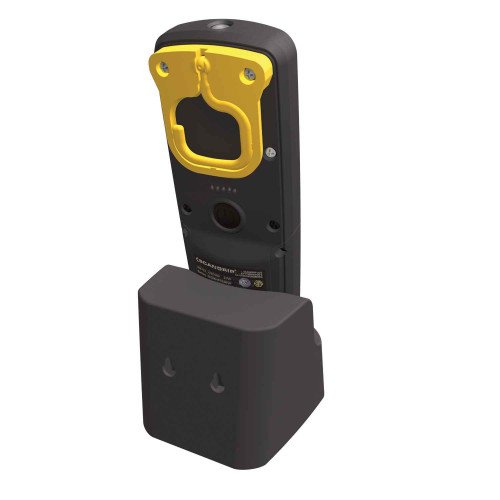

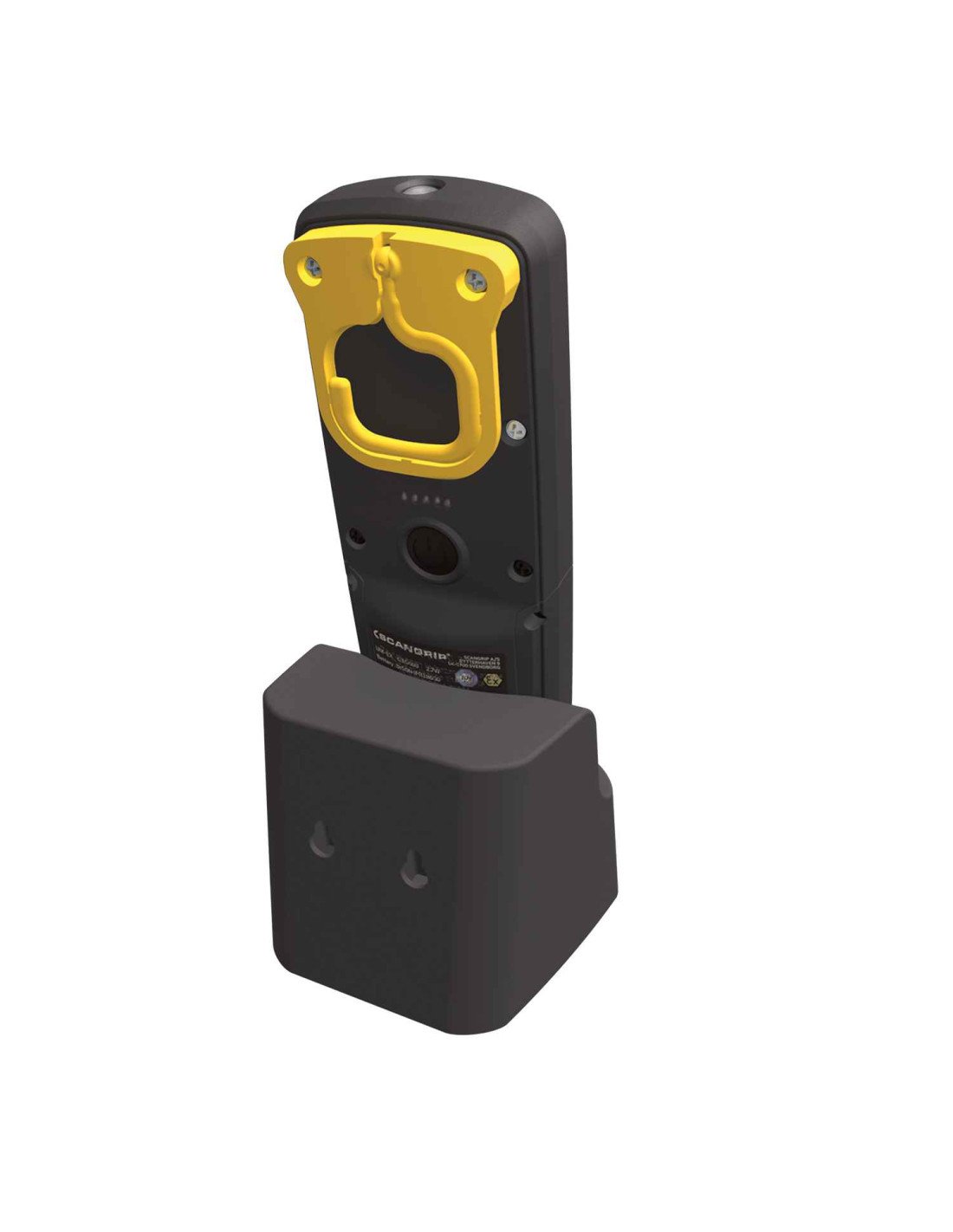

The lamp is recharged in the charging base. When not in use, you keep the lamp in the charging base which is prepared for wall mounting.
Why you should choose UNI-EX

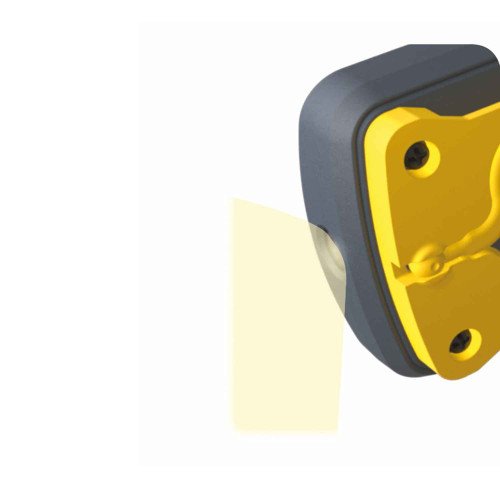

- 2-in-1 explosion proof flashlight and hand lamp in one, up to 350 lumen
- Up to 15 hours operation time
- Built-in magnet, belt clip and sturdy hook
- Extremely powerful and completely uniform illumination
- Waterproof (IP65)
- Ergonomic design for a comfortable, firm grip.
// The design of UNI-EX is unique and covered by EU design patent RCD No 3451038.
II 1G Ex ia IIC T3 Ga
II 1D Ex ia IIIC T130°C Da
// UNI-EX is approved and certified by TÜV SÜD according to the ATEX Directive no. 2014/34/EU effective from April 2016 and according to IECEx.
03.5617

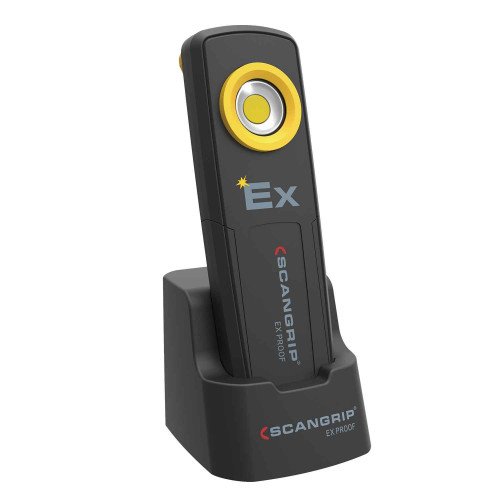

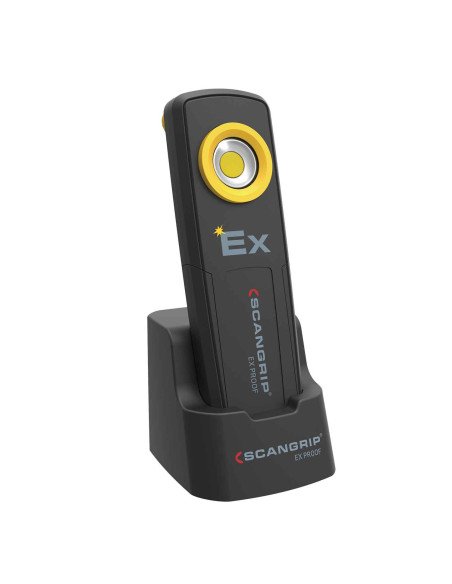

![UNI-EX, 03.5617](https://kebco.co/4615-home_default/uni-ex-035617.jpg)
- Plug Type
-
Type C - Europlug
- Country Of Origin
-
CN
- CRI Main
-
2 Levels
Ra >80
- Ingress Protection
-
IP65
- EXZones
-
0/20
- Length Main
-
220
- Width Main
-
70
- Height Main
-
39
- Net Weight
-
0.436
- Length Packaging
-
117
- Width Packaging
-
105
- Height Packaging
-
265
- Gross Weight Packaging
-
0.75
- Length Outer Box
-
375
- Width Outer Box
-
260
- Heigth Outer Box
-
460
- Gross Weight Outer Box
-
10
- Content Packaging
-
N/A
- Battery Type
-
0
- Power Source
-
0
- Battery Voltage
-
4-colour box
- Battery Capacity
-
Lamp
charge cable
charger
manual and certificates
- UNnumber
-
Li-ion
- Cable
-
Rechargeable Battery
- Charger Included
-
3.6
- Charging Voltage DC
-
6700
- Operating Voltage AC
-
UN 3481
- Power Outlet
-
5
- Adjustable Light Output Main
-
12
- Light Source Main
-
15
- Charging Time
-
1 m USB to mini DC
- Operating Time Up To
-
True
- CCT Main
-
3.5
6000
- Illuminance Min Main
-
COB LED
250
- Beam Angle Main
-
100°
- Illuminance Max Main
-
500
- Luminous Flux Min Main
-
175
- Luminous Flux Max Main
-
350
- Luminous Flux Max Secondary
-
150
- Operating Temperature
-
-20 °C to +45 °C
