MIDI-EX, 03.5611

Name: MIDI-EX, 03.5611
Brand: SCANGRIP
SKU: 03.5611
Price: 230.1 USD
Availability: PreOrder

Brand: SCANGRIP

Reference 03.5611

Request order

$230.10

10-15 days

Handy EX PROOF hand lamp with 180° tiltable lamp head SCANGRIP’s EX PROOF line is made for hazardous atmospheres with explosion dangers. The explosion proof line is ideal for offshore work, the chemical industry, tank vehicles, refineries and many more.

HANDY EX PROOF HAND LAMP WITH 180° TILTABLE LAMP HEAD

SCANGRIP’s EX PROOF line is made for hazardous atmospheres with explosion dangers. The explosion proof line is ideal for offshore work, the chemical industry, tank vehicles, refineries and many more. Long story short – the EX PROOF line is perfect for all industries where gas and dust are a safety risk.

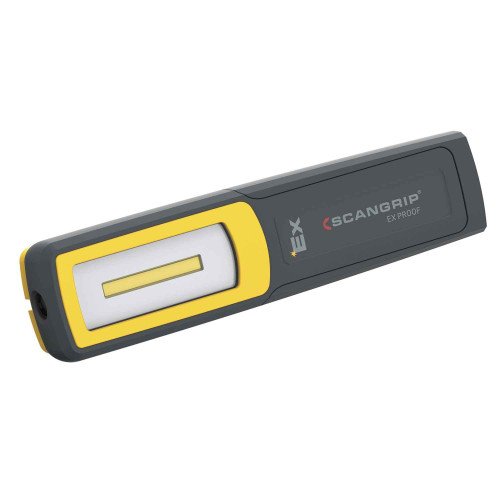

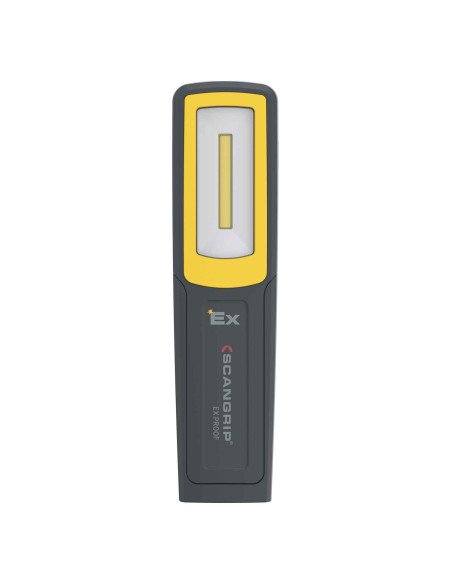

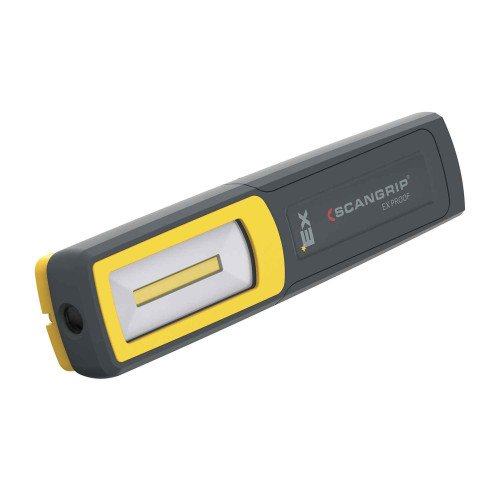

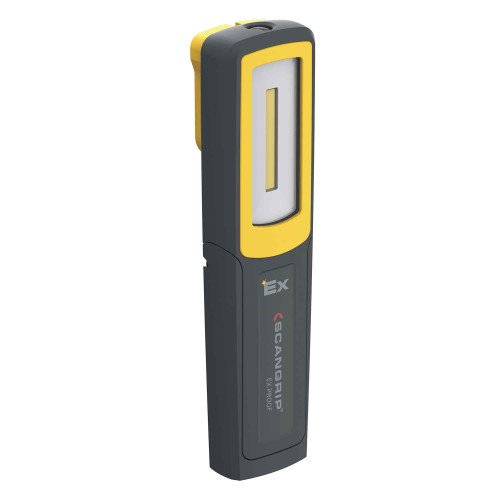

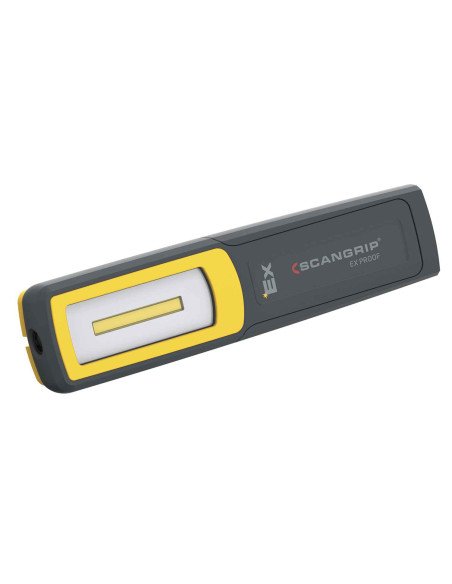

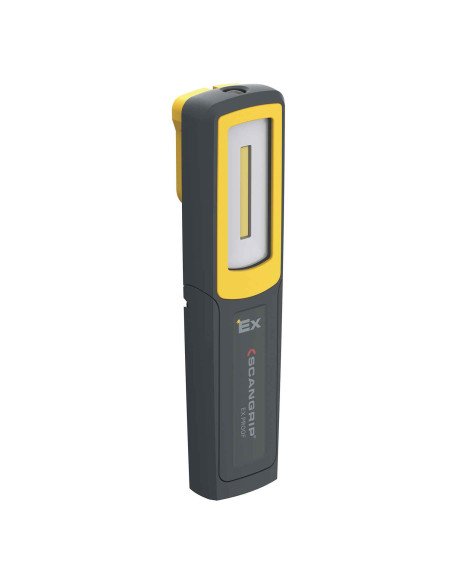

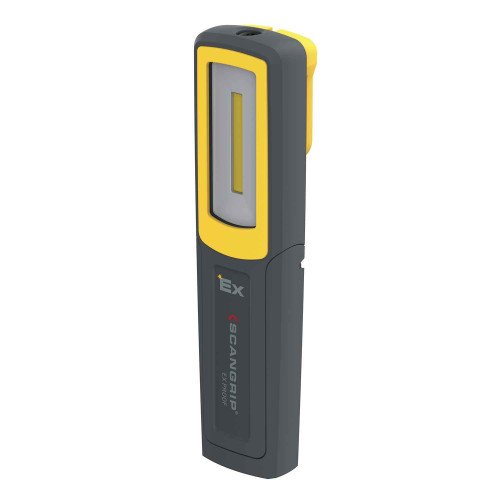

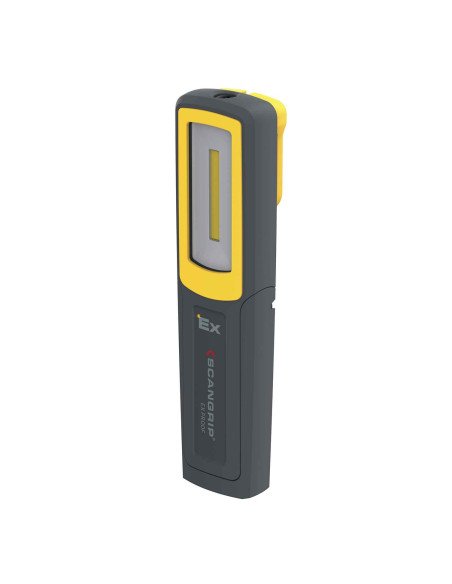

MIDI-EX is a very handy, rechargeable COB LED explosion proof light made for hazardous locations with risk of explosion.

The hand lamp is equipped with COB LED light providing a unique, powerful and completely uniform illumination which is ideal for working light.

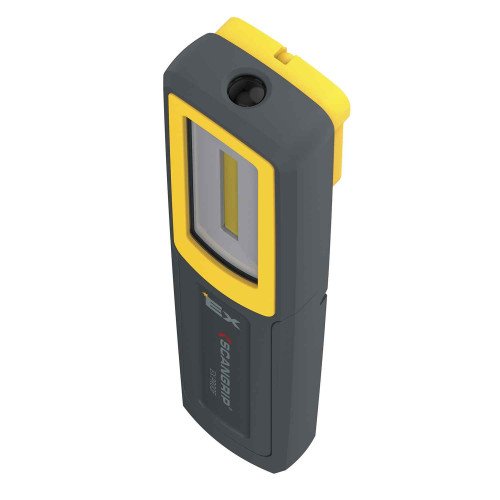

MIDI-EX is supplied with both mainlight and toplight. The main light offers two-step operating options depending on the type and duration of the work carried out: Step 1 = 50 %, step 2 = 100 % light output.

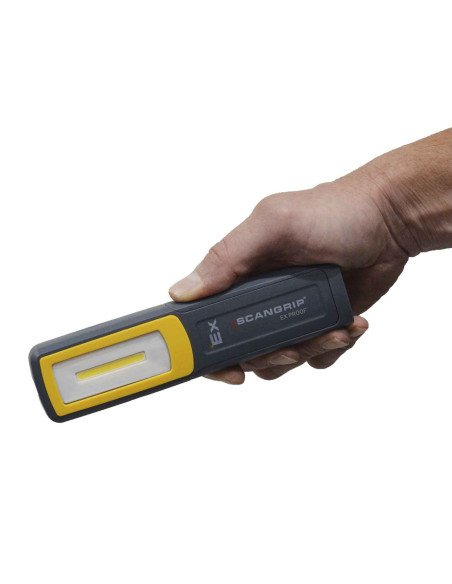

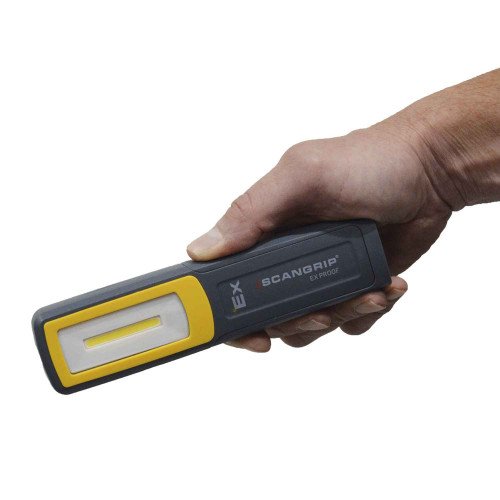

The extremely durable MIDI-EX lamp features a sturdy surface and the shape of the lamp provides a comfortable, ergonomic grip.

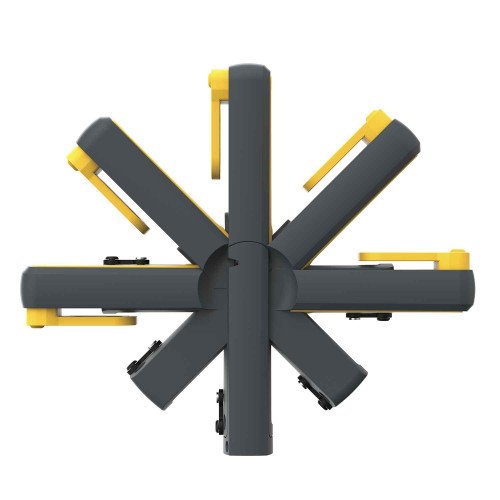

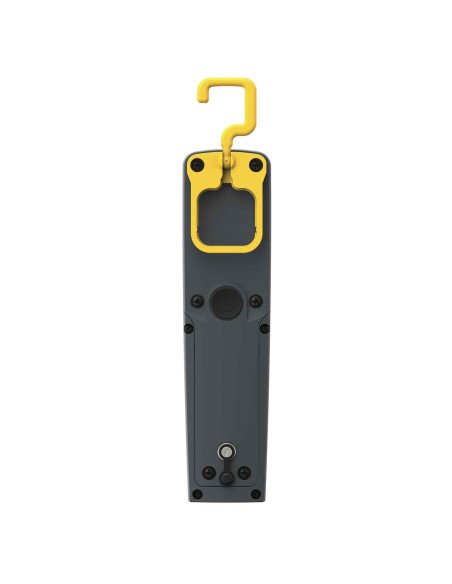

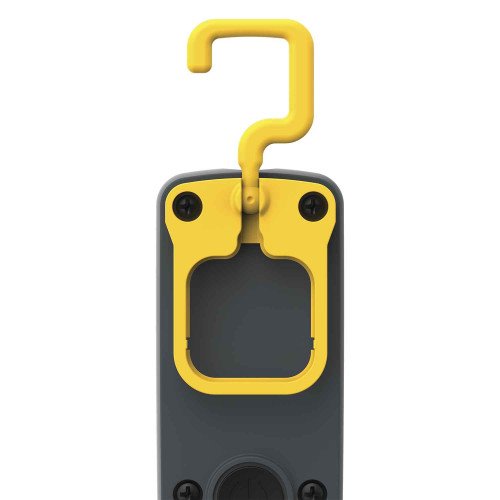

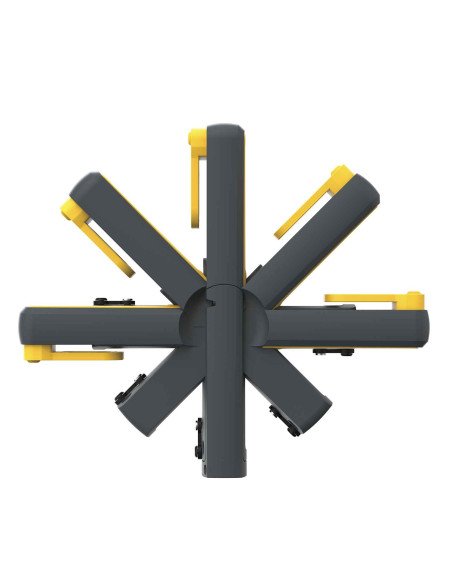

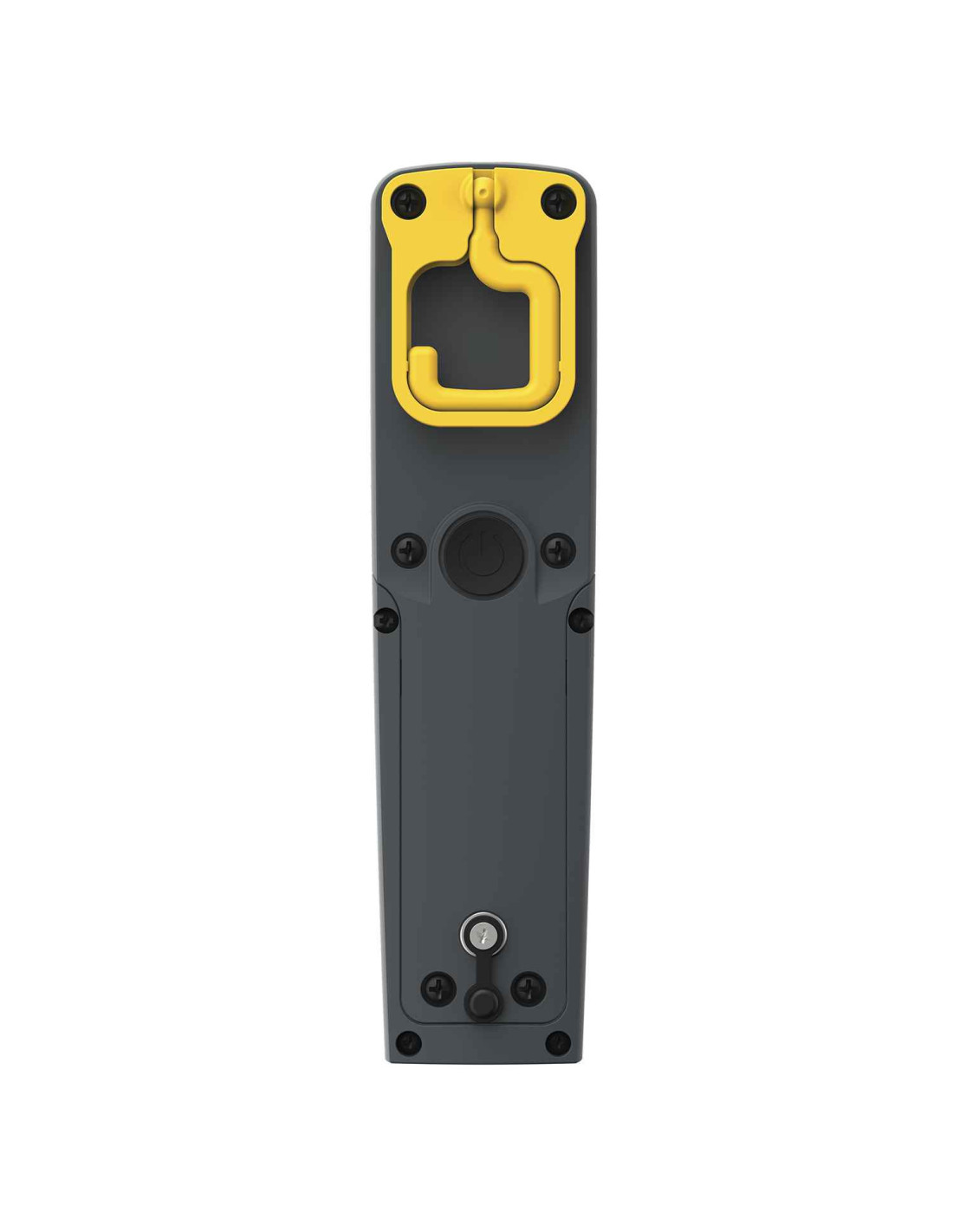

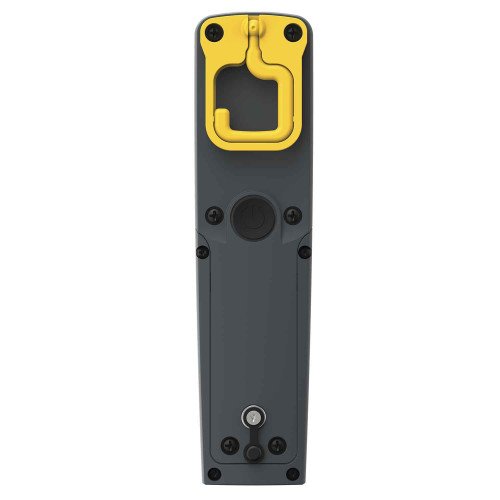

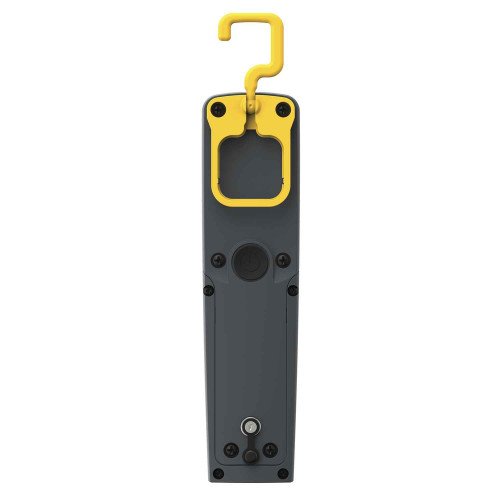

Place the explosion proof LED hand lamp everywhere you want during inspection work with the turnable sturdy hook or the strong built-in magnet in the bottom to have both hands free for working. The flexible lamp head tilts up to 180°.

It is designed to carry in the pocket or in the work belt by the built-in belt clip. In this way, you always have the work light close at hand when you need efficient and bright illumination for a job.

Why choose MIDI-EX?

Ultimate flexibility with the 180° turnable lamp head.
Equipped with a 2-step dimmer function
Ergonomically designed for a comfortable and firm grip
Providing a powerful and uniform illumination
2-in-1 explosion proof flashlight and hand lamp in one

// The design of MIDI-EX is unique and covered by EU design patent RCD No 5597010.

II 3G Ex ic IIC T5 Gc

II 3D Ex ic IIIC T100°C Dc

// MIDI-EX is approved and certified by TÜV SÜD according to the ATEX Directive no. 2014/34/EU effective from April 2016 and according to IECEx.

ATEX certificate no. TPS 18 ATEX 054006 0015 X Rev.00

IECx certificate no. IECEx TPS 18.0018X

03.5611

General Specifications

Plug Type: Type C - Europlug
Country Of Origin: CN
Ingress Protection: IP65
EXZones: 2 and 22

Dimensions

Length Main: 181.8
Width Main: 46
Height Main: 29
Net Weight: 0.181

Packing

Length Packaging: 188
Width Packaging: 95
Height Packaging: 50
Gross Weight Packaging: 0.22
Length Outer Box: 400
Width Outer Box: 230
Heigth Outer Box: 190
Gross Weight Outer Box: 0
Content Packaging: N/A
Battery Type: 0
Power Source: 0
Battery Capacity: Lamp
charger
usb cable
manual

Battery

UNnumber: Li-ion
Cable: Rechargeable Battery
Charger Included: 3.8
Charging Voltage DC: 1600
Operating Voltage AC: UN 3481
Adjustable Light Output Main: 3.5
Light Source Main: 5

Contents of the package

Charging Time: 1 m USB to mini DC

Power Consumption

CCT Main: 3
6000
Illuminance Min Main: COB LED
140

Lighting Specifications

Beam Angle Main: 105°
CRI Main: Ra >80
Illuminance Max Main: 280
Luminous Flux Min Main: 100
Luminous Flux Max Main: 200
Operating Temperature: -10° to +45°C

ean13 5708997356111
