Name: ABRASIVE BLASTING CONTAINER CABIN CCH12X2.3X2.4
Brand: COUTO
SKU: CABINACOUTO
Availability: PreOrder

Brand: COUTO

Reference CABINACOUTO

Request order

$0.00

10-15 days

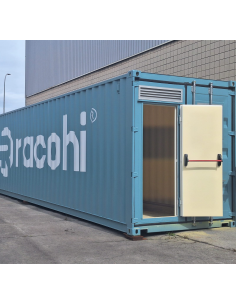

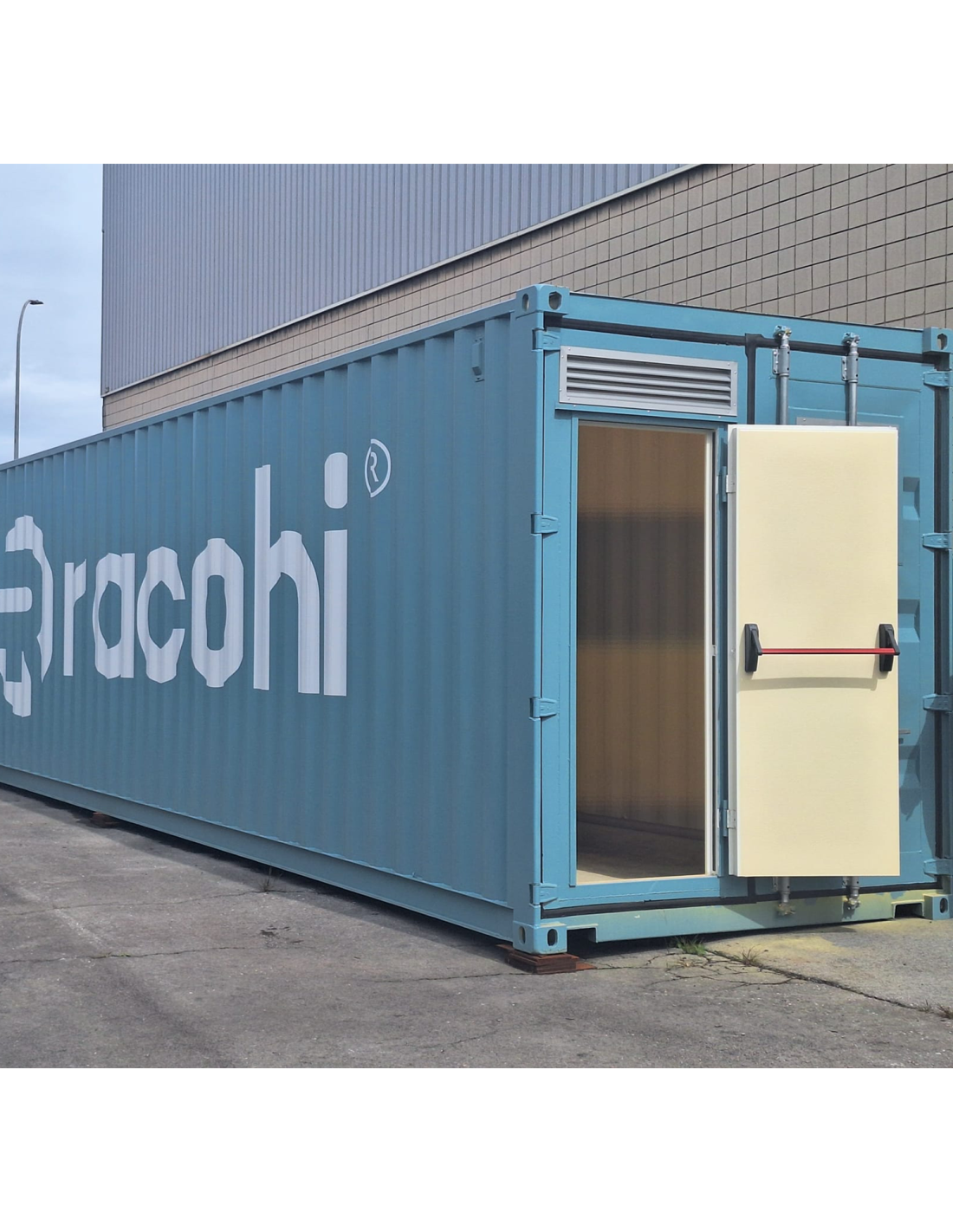

The enclosure consists of a standard 40-foot container, fully transportable. Manufactured according to ISO container standards ISO 668, ISO 830, ISO 1161, ISO 1496-1, ISO 6346. Suitable for outdoor use with C3 paint.

Regarding the abrasive blasting equipment, it is a Racohi* model RCH-200 LP unit. The systems feature the following characteristics: 200-liter capacity, working pressure up to 12 bar, CE certified complete blasting system.

Features

ABRASIVE BLASTING CONTAINER CABIN CCH12X2.3X2.4

ACCESS DOORS
Cargo door to blasting cabin:
It has a cargo door consisting of two leaves. With the following approximate dimensions: 2.3 m wide and 2.3 m high.
Pedestrian door to blasting cabin:
- Single-leaf steel door of 0.9 x 2.0 m with external handle and internal panic bar.
Machine room access door:
Double-leaf steel door of 1.6 x 2.0 m with external handle and internal panic bar.

ABRASIVE BLASTING CONTAINER CABIN CCH12X2.3X2.4

ANTI-ABRASION PROTECTION

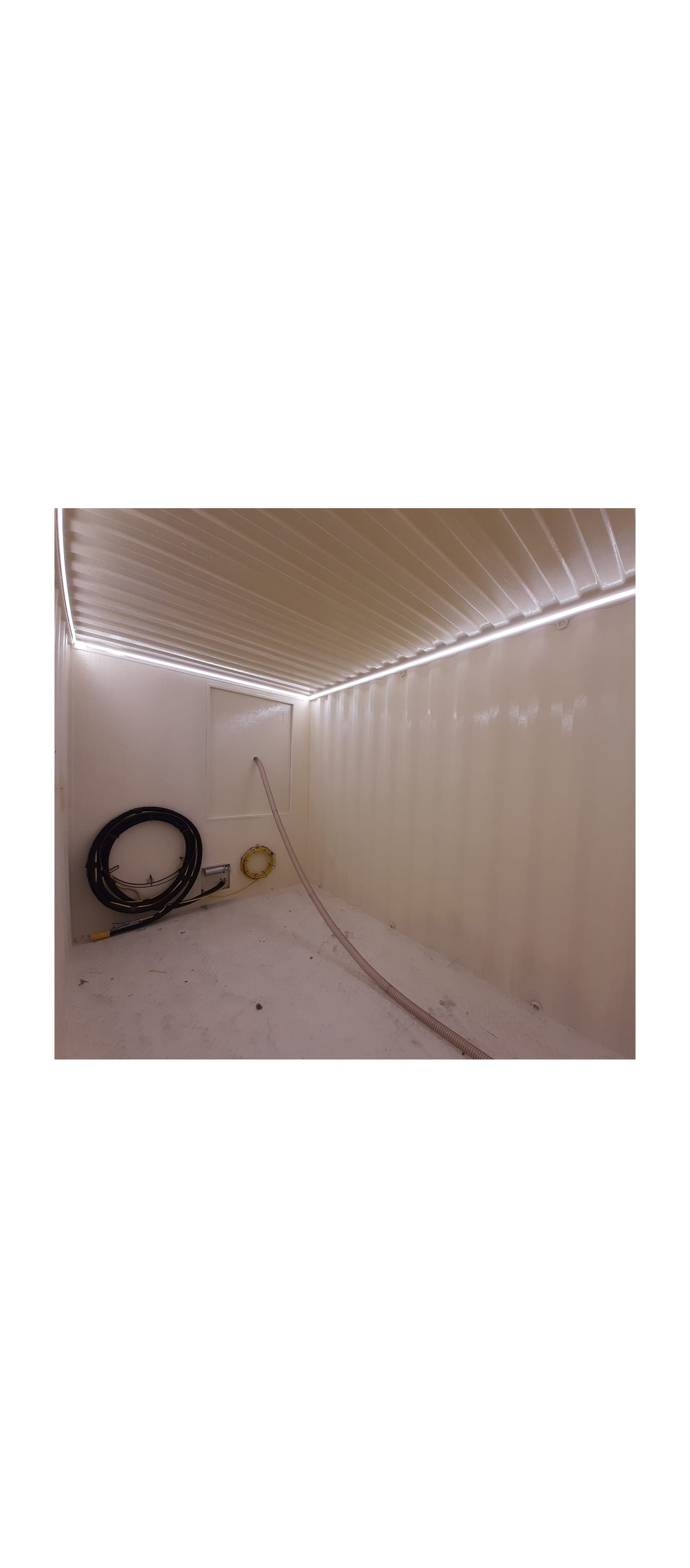

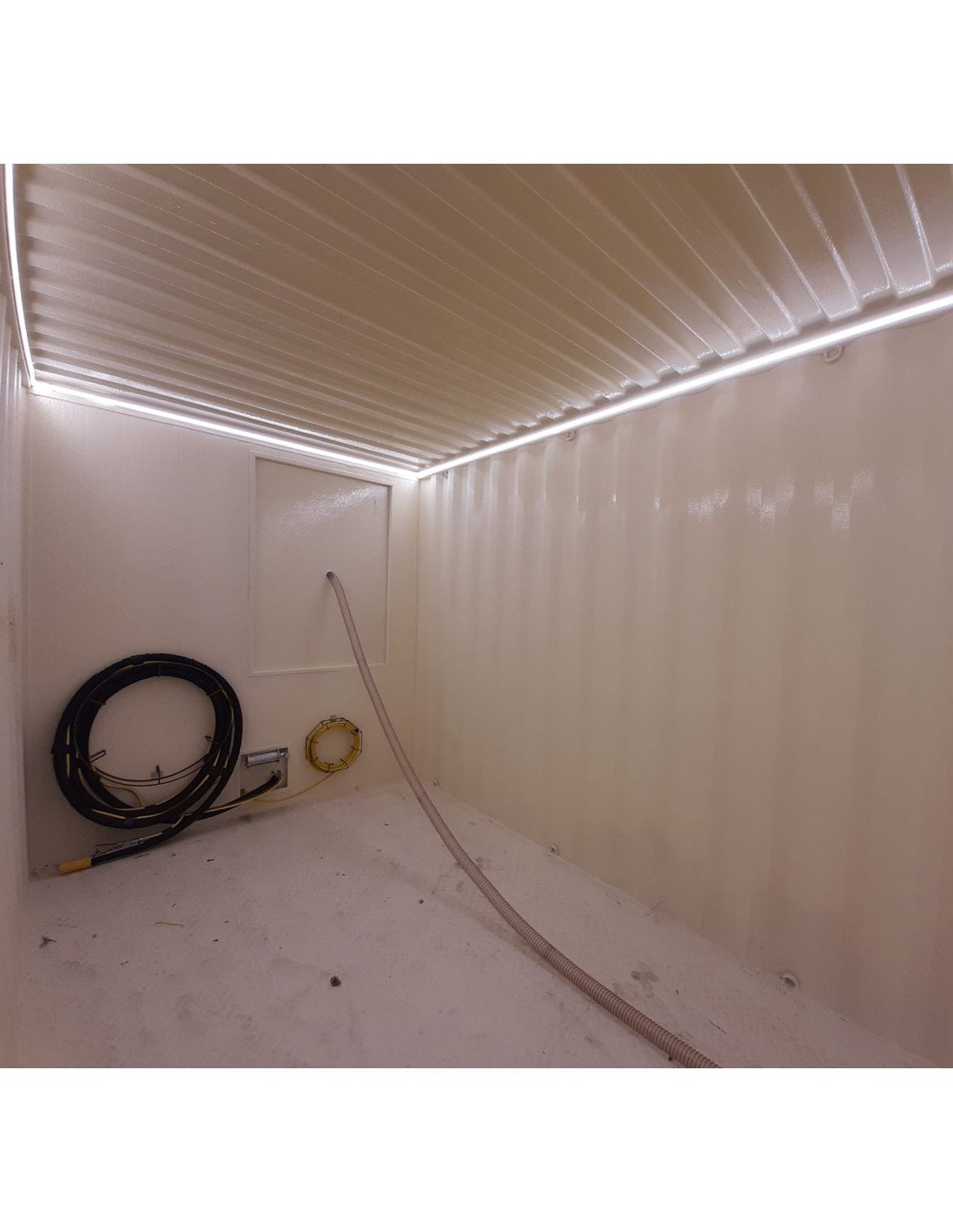

Interior coating on all surfaces of the blasting cabin with white anti-abrasive polyurea. Applied hot and as a single membrane, with a thickness of 3 mm. Protects all walls, ceiling, and floor from direct projections and abrasive rebounds.

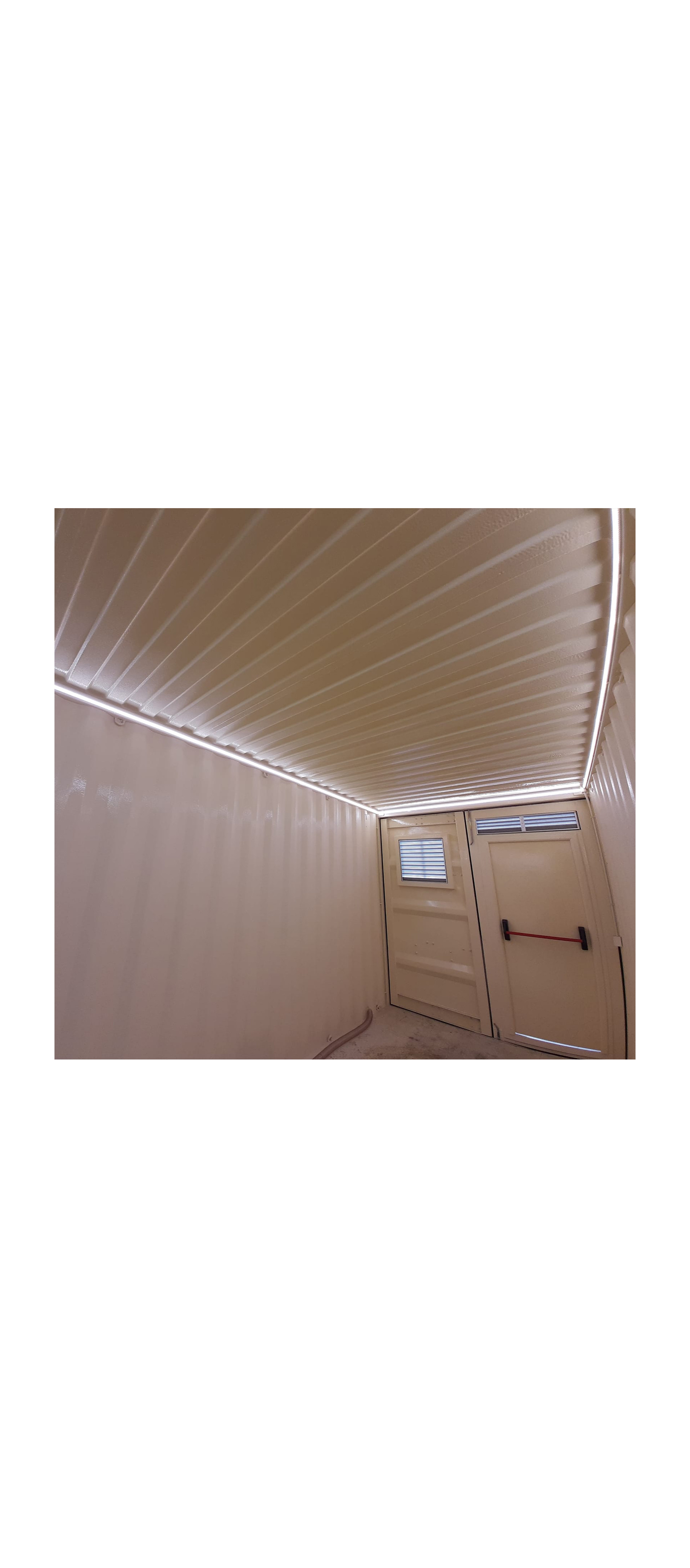

LIGHTING
Lighting via LED projectors installed perimetrically throughout the container. Total power less than 1 kW.

ABRASIVE BLASTING CONTAINER CABIN CCH12X2.3X2.4

RCH 200 LP ABRASIVE BLASTING EQUIPMENT
Regarding the abrasive blasting equipment, it is a Racohi* model RCH-200 LP unit. The systems feature the following characteristics: 200-liter capacity, working pressure up to 12 bar, CE certified complete blasting system.
BREATHABLE AIR SYSTEM
RADEX line filter with exceptional filtration capacity, prepared for 2 users but capable of supporting up to six. Provides clean, breathable air, removing oils, water, particles (down to 0.15 microns), odors, and organic vapors. Aluminum filter housing, replaceable high-capacity activated carbon cartridge with long service life. No electrical connection required.
Includes 10 m of non-toxic hose between RADEX and helmet.

INTERIOR USABLE DIMENSIONS

CABIN

Length

8.4 m

Width

2.3 m

Height

2.4 m

MACHINE ROOM

Length

3.5 m

Width

2.3 m

Height

2.4 m

ENCLOSURE

40-foot metal container.

Cargo door to blasting cabin (1 unit).

Cargo/pedestrian door to machine room (1 unit).

Pedestrian door to blasting cabin (1 unit).

Comprehensive protection with white anti-abrasive polyurea on walls, ceiling, and floor.

LIGHTING

Lighting via perimeter LED strip in the blasting cabin.

Central LED panel in the machine room.

RCH 200 P ABRASIVE BLASTING EQUIPMENT (1 UNIT)

RCH 200 LP blaster with 200-liter capacity and maximum pressure of 12 bar.

Pneumatic remote control with decompression silencer in the cabin.

Twin-tube remote control trigger.

Blasting pressure control from 0.5 bar, depending on adjustment.

Blasting/blowing: by changing the position of a valve, compressed air can be blown through the same blasting hose for part cleaning.

10 m of 1%” blasting hose with blast coupling and nozzle holder.

10 m of twin-tube hose mounted on the blasting hose.

8 mm blast nozzle or other size.

Wall supports for blasting hose and non-toxic hose.

Operator protections (NOVA3 helmet, coveralls, gloves, etc.).

BREATHABLE AIR SYSTEM

RADEX: breathable air purifier for 2 operators (1 unit).

10 m of non-toxic hose from RADEX to helmet.

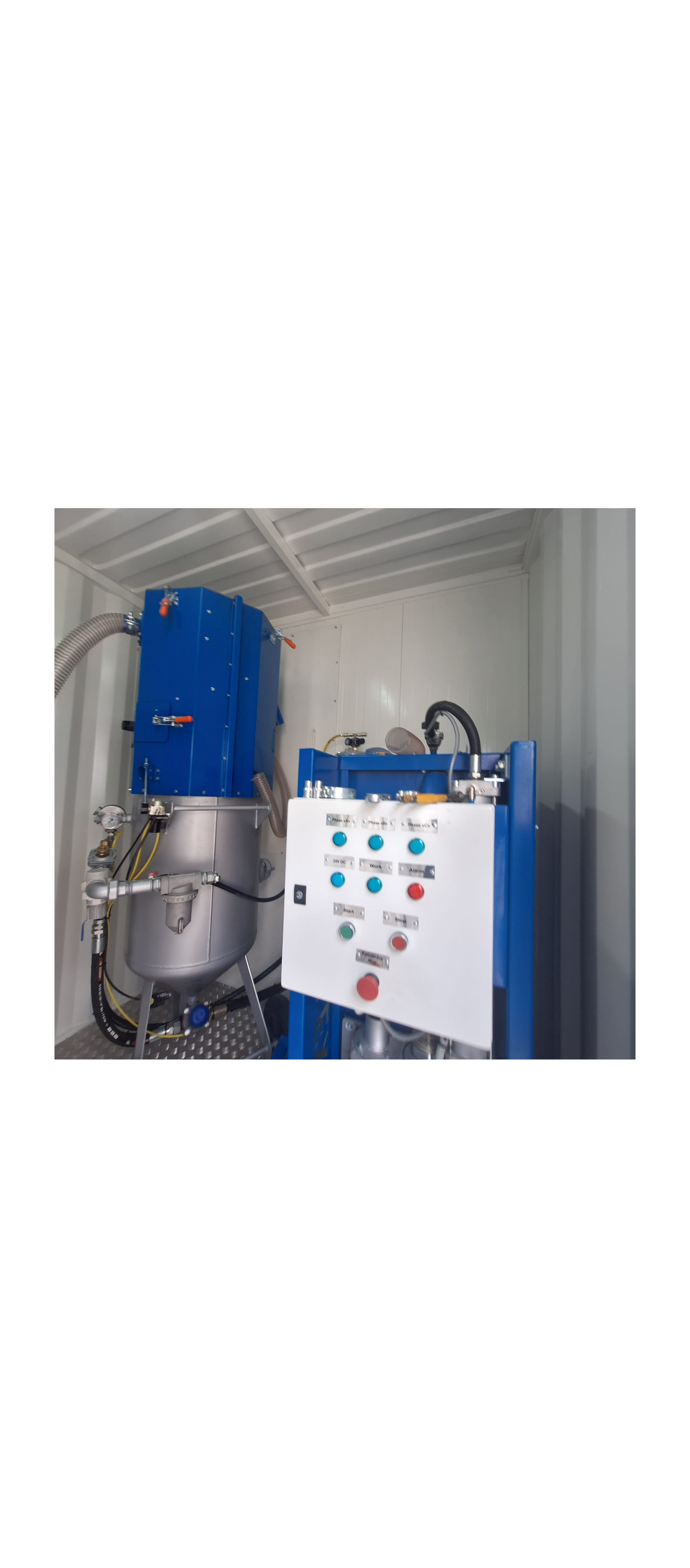

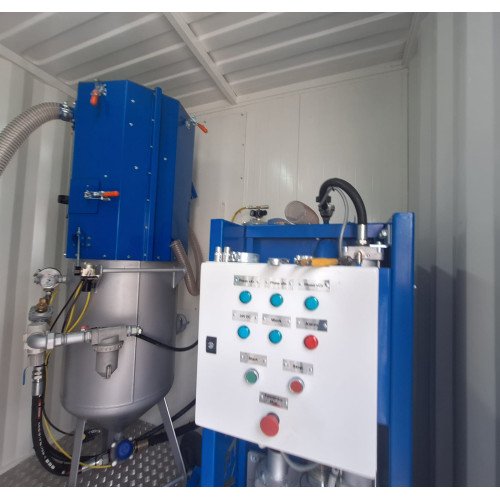

ABRASIVE RECOVERY SYSTEM VIA SUCTION

High-vacuum cleaner for abrasive material recovery:

Power

5.5 kW.

Capacity

2,000 — 4,000 kg/h of abrasive.

Maximum vacuum

270 mbar.

Working flow rate

220 m3/h.

Filter surface

7 m2.

Vacuum silo, which separates the abrasive and stores it at the top of the blasting equipment.

Suction hoses:

10 m between silo and nozzle, for manual suction tasks.

Installation between silo and vacuum cleaner.

Suction nozzle with wheels.

VENTILATION AND FILTRATION SYSTEM

Shot blasting cartridge filter (1 unit):

Polyester cartridges (4 units).

Air flow rate 5,000 m3/h.

Power 4.0 kW.

Centrifugal fan with reaction blades and standard motor.

Suction hoods and air intake grilles.

Automatic cartridge cleaning system using compressed air.

ELECTRICAL INSTALLATION

Electrical installation for cabin and machine room lighting.

Dust filter control electrical panel.

Abrasive vacuum cleaner control electrical panel.
