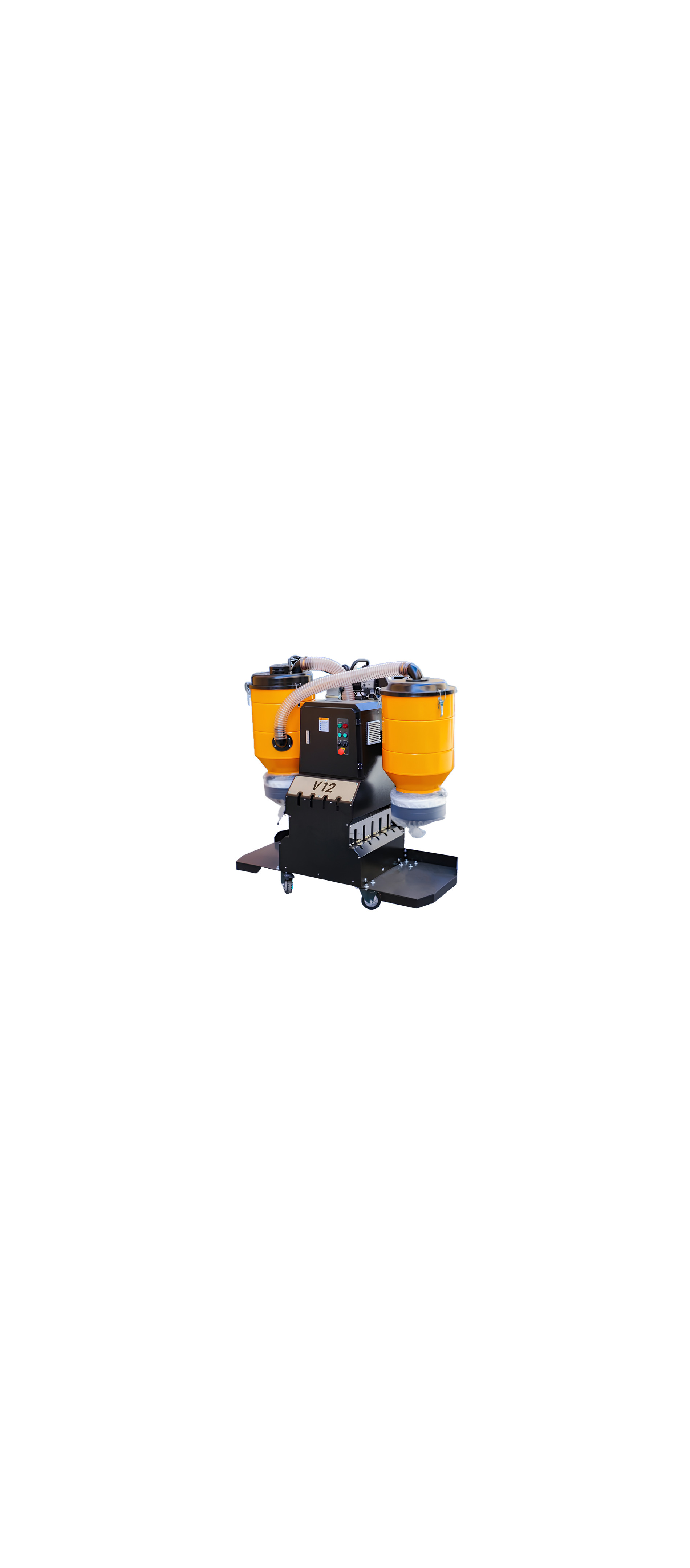

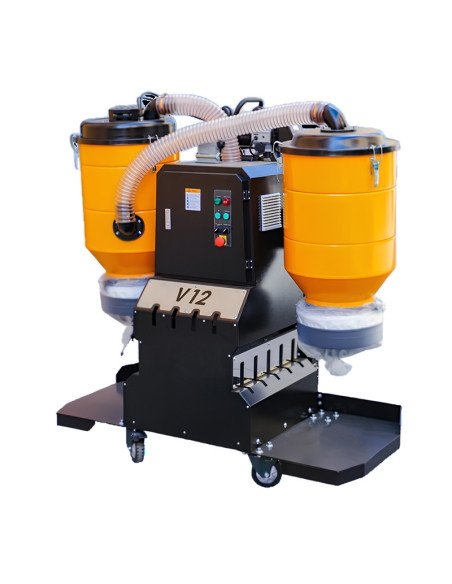

V12 Industrial Vacuum Cleaner for FALCON
V12 Industrial Vacuum Cleaner for FALCON

V12 Industrial Vacuum Cleaner for FALCON

FLOOR SYSTEMS
V12 Vacuum

3 phase

Gear driven with 12 plates

With 20HP Inverter

For big project working



INDUSTRIAL VACUUM V12

V12 is designed to pair with JS Floor Systems heavy duty concrete grinders and remote-controlled floor grinder series. Equipped with HEPA H13 cartridge with 15 sock filters & conical filter, V12 dust collector is build for your heavy duty and toughest jobs. With a T joint, V12 can be connected to 2 concrete grinders at the same time. Its 17HP (12.5KW) motor can power 2 grinders.

Filter Cleaning System V12 uses the pressure differential to clean the filter. Place the pulling baffle, close the dust port, then the chamber is in vacuum status. Shake the rod then the dust will go from filter todust collecting bag.

Cyclone pre separator (recommend buy together)
1, extends the life of your HEPA filter
2, collect 95% of heavy concrete dust before reaching vacuum
3, significantly save your time and money

Airflow: 618 CFM 1050m3/h Continuous dust collecting bag system collects dust and it's easy to disposal. V12 features sturdy steel construction and pivoting wheels with a braking system for safety and maneuverability.

V12 Vacuum

V12 Industrial Vacuum Cleaner for FALCON

Área del filtro
47
000 cm²
CFM
1050 m³/h
General Specifications
Air Filter
Ciclón + HEPA
Overview
Uses type
Industrial
Weight
326 kg / 719 libras
Warranty
1 Year Limited Warranty
Vacuum Outlet
2 inches
Engine
Engine
17 HP / 12.5 kW
Current
48/24 amperios
Dimensions
Width
90 inches
Height
86 inches
Depth
53 inches
Voltage
Power
220V / 380V
